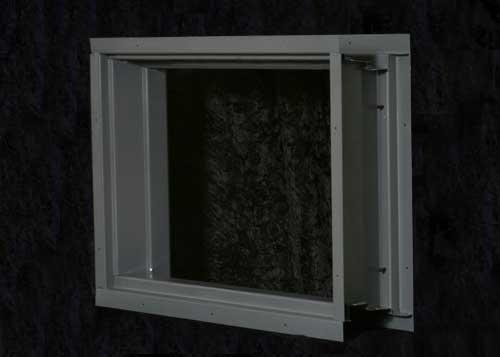

Monarch Pour in Place Bucko Window Frames

Monarch Materials Group

(click image to enlarge)
SKU / Product InfoQuantity
93015R
Call Out: 1512, Overall Dim: 35 1/2 x 16, Glass Ea. Lite: 8, Grey Gloss Finish
93016R
Call Out: 1516, Overall Dim: 35 1/2 x 20, Glass Ea. Lite: 8, Grey Gloss Finish
93017R
Call Out: 1520, Overall Dim: 35 1/2 x 24, Glass Ea. Lite: 8, Grey Gloss Finish
93021R
Call Out: 1512, Overall Dim: 35 1/2 x 16, Glass Ea. Lite: 10, Grey Gloss Finish
93022R
Call Out: 1516, Overall Dim: 35 1/2 x 20, Glass Ea. Lite: 10, Grey Gloss Finish
93023R
Call Out: 1520, Overall Dim: 35 1/2 x 24, Glass Ea. Lite: 10, Grey Gloss Finish
97031R
Call Out: 1520, Overall Dim: 35 1/2 x 24, Glass Ea. Lite: 8, Galvanized
97049R
Call Out: 1520, Overall Dim: 35 1/2 x 24, Glass Ea. Lite: 10, Galvanized
97158R
Call Out: 1520, Overall Dim: 35 1/2 x 24, Glass Ea. Lite: 7.5, Galvanized w/ Window Well Hanging Bolts
97159R
Call Out: 1512, Overall Dim: 35 1/2 x 16, Glass Ea. Lite: 8, Galvanized w/ Window Well Hanging Bolts
97160R
Call Out: 1516, Overall Dim: 35 1/2 x 20, Glass Ea. Lite: 8, Galvanized w/ Window Well Hanging Bolts
97161
Call Out: 1520, Overall Dim: 35 1/2 x 24, Glass Ea. Lite: 8, Galvanized w/ Window Well Hanging Bolts

Quick Overview
    Interested in this item or want more information?
    Monday—Friday: 6:30am till 4:30pm EST
    Saturday—Sunday: Closed
    Phone: 1-800-796-4716
    Email: sales@tatool.net

    Can't find what you want? Give us a call and we can help you find it.
    Details
  • Pour in place unit.
  • Welded frame for maximum structural strength and rigidity.
  • Heavy gauge steel and unitized construction provides outstanding strength.
  • Available in galvanized or long-lasting grey gloss finish.
  • Available in 12", 16" or 20" heights and from 7 1/2", 8", 9", 9 1/2" and 10"wall thicknesses.
  • Designed to work with the C-2000 Aluminum Slider, Aluminum Hopper and Vinyl Pro Slider.
  • Nail holes allow for easy installation into a wood forming system.
  • Easily clamped into an aluminum framing system. Hanging brackets also available.
  • Bolts applied for window well mounting (optional).
    • Additional Information
    Manufacturer: Monarch Materials Group
