Details

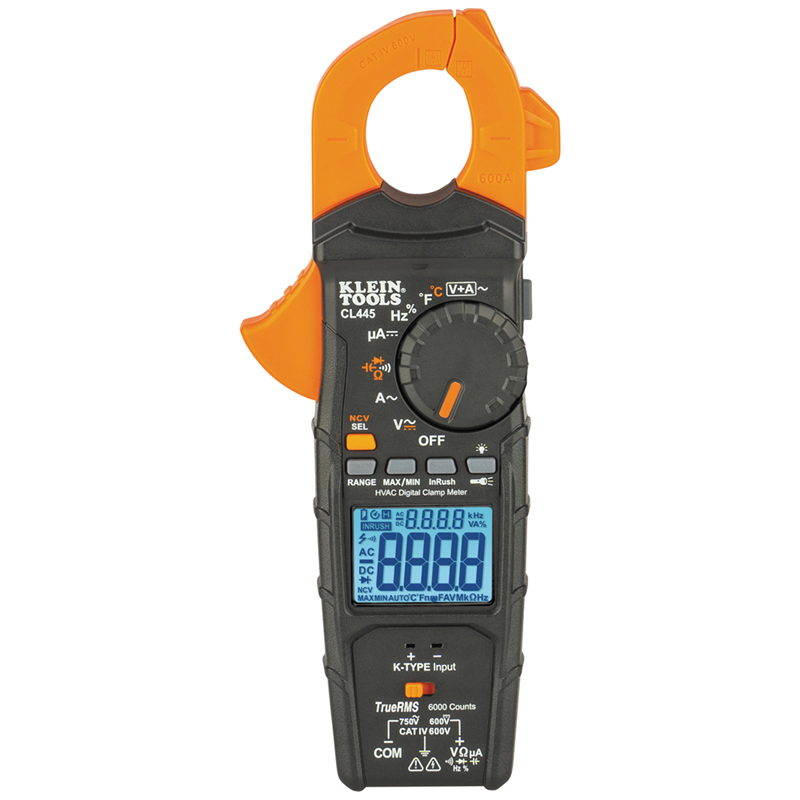

CL445 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
Digital clamp measures 600 A AC current and inrush current
Test leads measure 750V AC/600V DC voltage, DC micro amp, resistance, continuity, frequency, duty-cycle, capacitance, and diode tests
K-Type thermocouple port for measuring temperature from -148 to 1832-Degree Fahrenheit (-100 to 1000-Degree Celsius)
Detect AC current with non-contact voltage tester integrated into the clamp jaw
Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
Dedicated mode for capturing DC micro amp and inrush current
Meter has a built-in worklight to illuminate in low light areas
CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating
Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
Can be used with Magnetic Hanger (Cat. No. 69417, sold separately) for hands free operation

Additional Information

Manufacturer: Klein Tools
