15" Drill Press

14658

Ridgid

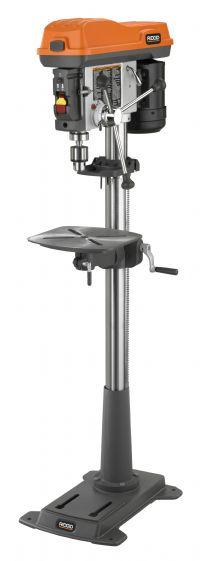

15" Drill Press
(click image to enlarge)
Quick Overview
  • Input: 1/2 HP TEFC induction, 120 V

  • Number of Speeds: 12

  • No Load Speed: 300 – 3,100 r/min.

  • Chuck Size: 5/8 in.

  • Spindle Travel: 3-3/4 in.

  • Overall Height: 65-1/2 in.

  • Tool Weight: 158.4 lb.
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details
  • 1/2 HP Totally Enclosed Fan Cooled Motor™ – heavy duty power to bore through the toughest materials

  • Heavy duty construction – extra wide cast iron base, table, head and heavy gauge tubular steel column

  • Left/right hub – allows positioning of the crank handles on the left or right side of the head

  • Easy-to-use woodworking table – large clamping edges and four mounting slots make this table extremely versatile

  • Poly-V belt drive – limits vibration and improves power transfer

  • 3-3/4 in. Quill travel – bore completely through a dimensional 4x4 in one pass

  • Feature-packed – smooth actuating rack and pinion table elevation, tilting table, quick release belt tension lever, built-in work light and chuck key storage

  • User-friendly handles and controls – Sof-Touch™ handles and knobs, high visibility bevel and depth scales and indicators

  • Large capacity – throat depth allows drilling to the center of a 15 in. workpiece. 5/8 in. chuck accepts 1/32 in. to 5/8 in. drills and Forstner bits, 12 speed settings to optimize rate for material, hole diameter and depth
    • Additional Information
    Manufacturer: Ridgid
