Convenient operation that is up to 5 times faster, due to new drilling technology and specially-developed core bit cutting geometry.
Hand-held drilling of holes up to 1 in diameter in steel up to 3/4 in thickness using carbide core bits.
Hand-held drilling of holes up to 2-1/8 in diameter in sheet metal up to 5/32 in thickness with carbide hole saws.
Torsion-free, barrel-type motor housing.
Carbide core bits with optimized service life.
Powerful motor.
Torque slip clutch.
Speed-controlled tacho electronics.
Infinitely variable electronic speed adjustment.
Electronic overload protection.
Reversible.
Self-start lock.
Superb service life.
Wide range of accessories.

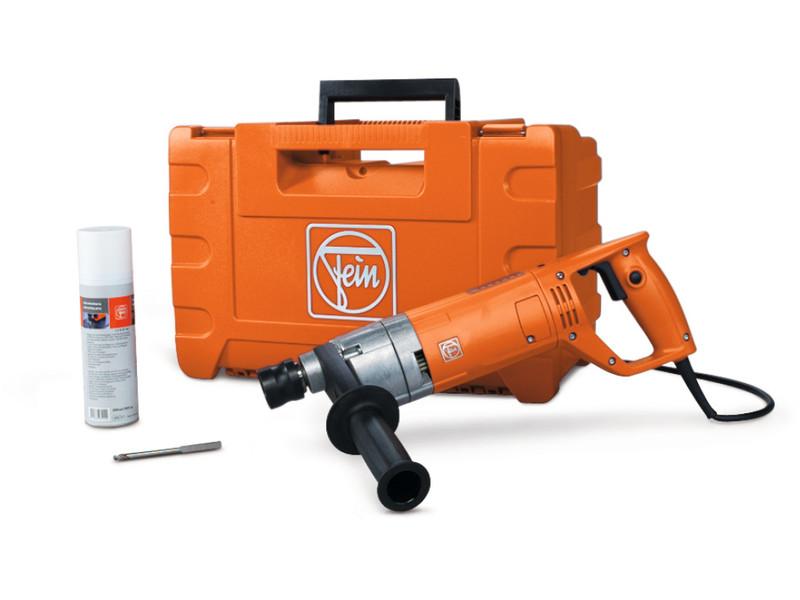

Price Includes:

1 metal core-drilling machine KBH 25
1 pilot bit
1 handle
1 cutting spray
1 tool case

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Power consumption: 1,200 Watts

Power output: 680 Watts

Full load speed: 0-520 rpm

hole-dia. steel core bits: 9/16 - 1 in

Capacity in stainless steel Ø: 9/16 - 1 in

hole-dia. aluminum core bits: 9/16 - 1-3/16 in

Core drill, max. drilling depth: 3/4 in

hole-dia, steel hole saws: 9/16 - 2-1/8 in

hole saws max. drilling depth: 5/32 in

Thread in steel up to: 15/32 in

Minimum clearance: 1-1/16 in

Core bit holder: QuickIN Plus

Cable with plug: 13.1 ft

Weight according to EPTA: 7.3 lbs

Additional Information

Manufacturer: Fein Tools
