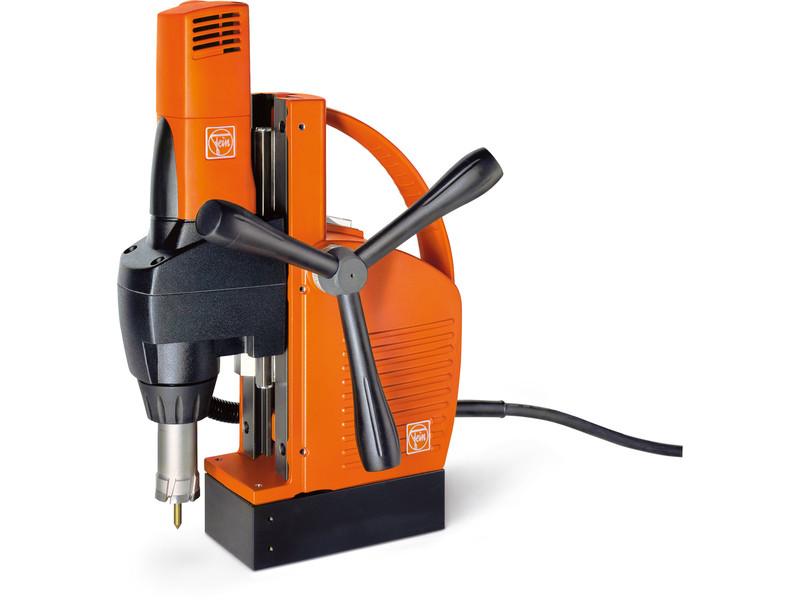

Mag Drill unit up to 1-1/4 in

KBM 32Q

Fein Tools

Compact core drill unit with high mobility for installation jobs.
(click image to enlarge)
Quick Overview
  • Small, extremely light core drill unit with superb handling for vertical and overhead use.
  • QuickIN system for fast, keyless tool changes.
  • Adjustable double dovetail guide enables use of long drilling accessories without removing the machine from the workpiece.
  • High torque, FEIN high-performance motor.
  • Powerful magnet.
  • Magnet monitor system.
  • Integrated cooling lubricant supply.
  • Electronic overload protection.
  • Self-start lock.

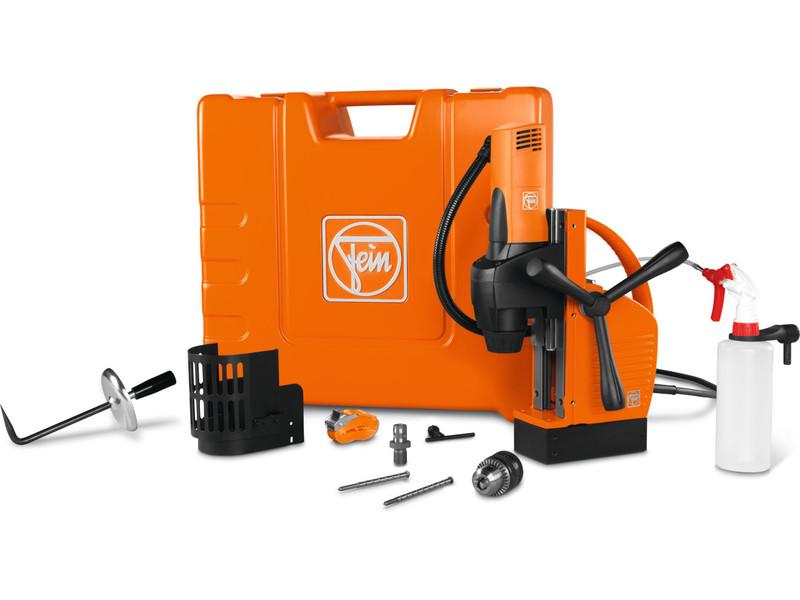

    • Price Includes:
  • 1 case
  • 1 coolant pump
  • 1 safety strap
  • 1 chip hook
  • 1 1/2 in 3-jaw chuck
  • 1 touch guard
  • 2 QuickIN Weldon adapters
  • 4 centering pins
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details
  • Core bit max. dia.: 1-1/4 in
  • Core drill, max. drilling depth: 2 in
  • Twist drill max. dia.: 1/2 in
  • TappingM: 12 in
  • Power consumption: 700 Watts
  • Power output: 450 Watts
  • No load speed: 550 rpm
  • Full load speed: 440 rpm
  • Core bit holder: QuickIN
  • Stroke: 5-5/16 in
  • Total stroke range: 10-1/4 in
  • Magnetic holding force: 1,980 lbs
  • Magnetic base sizes: 6-5/16 x 3-1/8 in
  • Cable with plug: 13 ft
  • Weight according to EPTA: 23.1 lbs
    • Additional Information
    Manufacturer: Fein Tools
