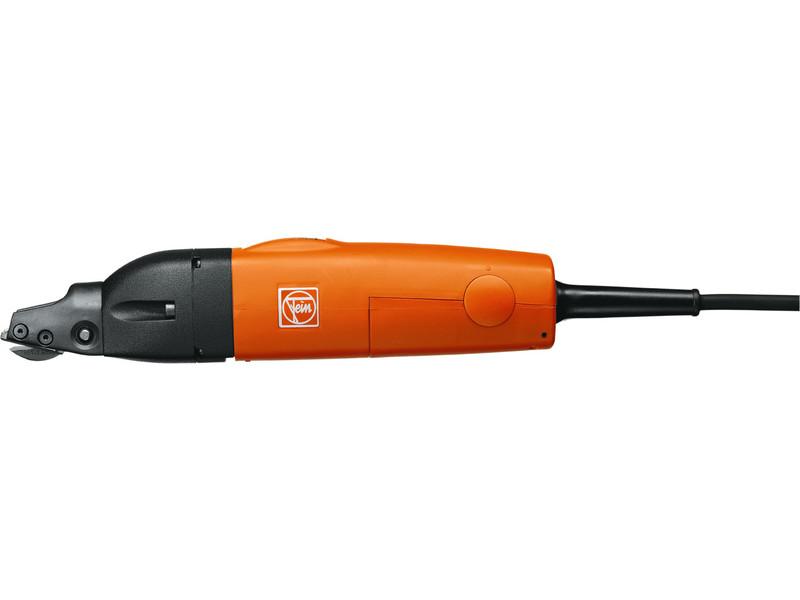

Slitting Shear up to 16 gauge

BSS 1.6 C

Fein Tools

Easy-to-use and curve-compatible slitting shear with integrated chip cutter.
(click image to enlarge)
Quick Overview

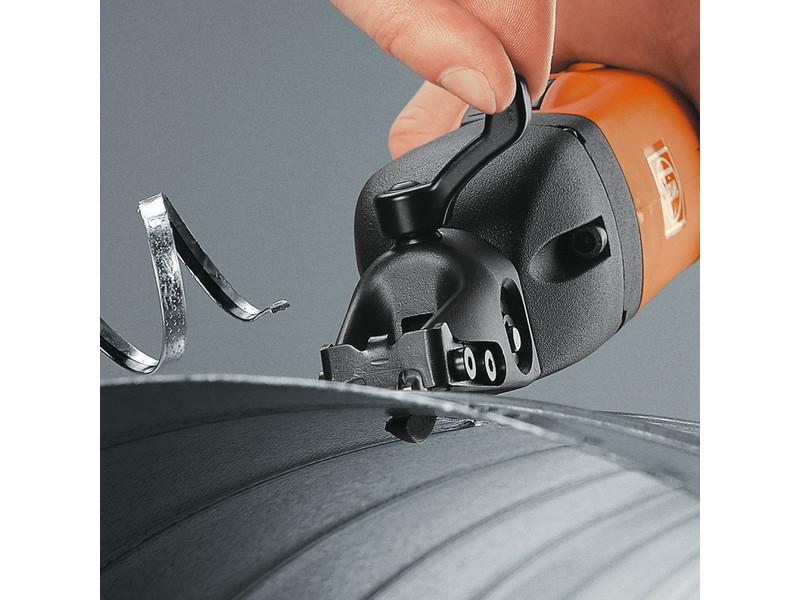

  • Chip cutter for clipping off the cut chip at any point.
  • Left and right curve cuts and distortion-free cutting possible with one continuous chip.
  • Rapid work progress due to excellent view of the cutting line through the open-front cutting head.
  • Excellent ergonomics and low weight.
  • Motor with outstanding performance and stability.
  • Cutting blade with outstanding service life.
  • 16 ft. cable.
  • Clean swarf removal prevents injuries or scratches on workpieces.
  • Stainless steel up to 19 gauge.
  • Wide range of accessories.
  • with blade for curves.
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details
  • Power consumption: 350 Watts
  • Power output: 210 Watts
  • Strokes: 3,800 rpm
  • Cutting speed: 6 - 10 ft/min
  • Cable with plug: 16 ft
  • Weight according to EPTA: 3.1 lbs
  • Steel 56,000 lbf/in²: 16 gauge
  • Steel 84,000 lbf/in²: 18 gauge
  • Steel 112,000 lbf/in²: 21 gauge
  • Non-ferrous metals up to 35,000 lbf/in²: 14 gauge
  • Cutting width: 3/16 in
  • Radius of smallest curve: 3-1/2 (1-3/16)¹ in
  • Immersion dia.: 5/8(5/16)¹ in

    • Price Includes:
  • 1 blade, straight, up to 16 gauge
  • 1 pair of cutting bars
  • 1 wrench
    • Additional Information
    Manufacturer: Fein Tools
