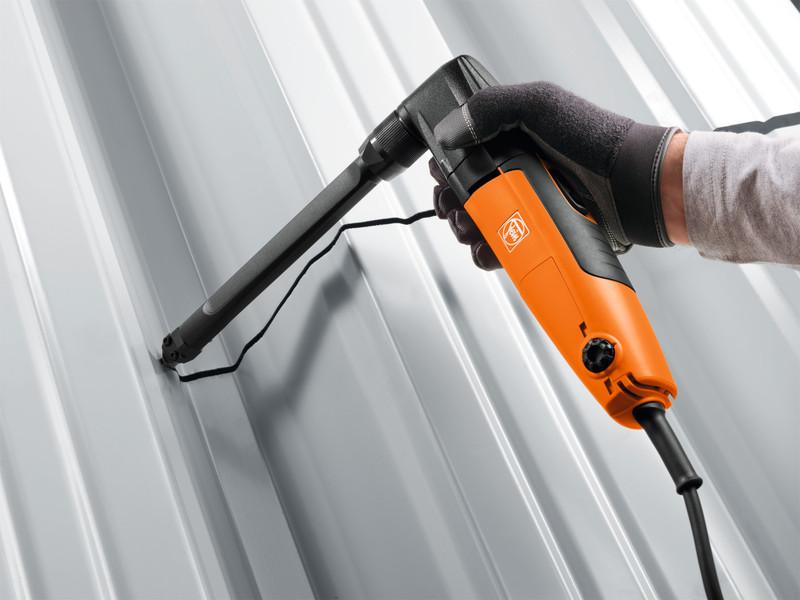

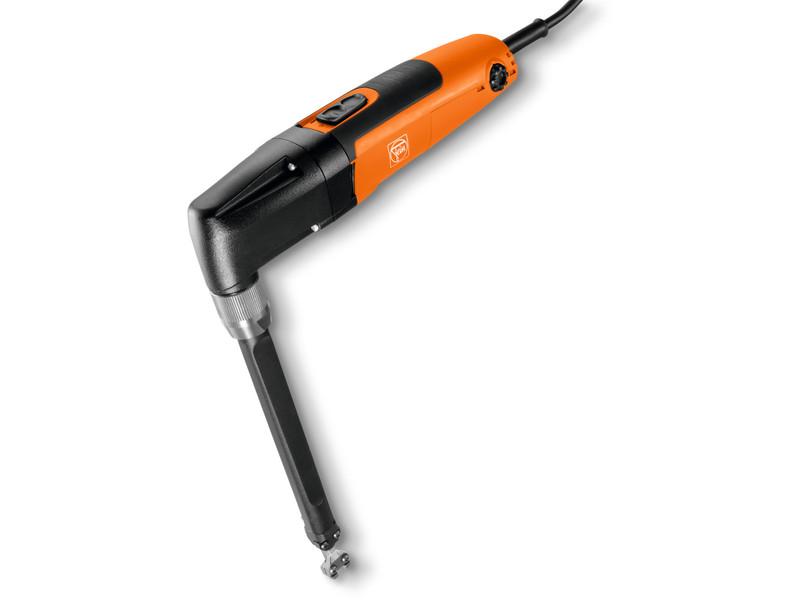

An uncompromising tool for handling trapezoid sheet metal with channels up to 6.3 in deep.
Optimum ergonomics, including a motor housing that is up to 20% slimmer thanks to an extremely narrow drive head.
Cutting direction setting can be changed in 45° increments up to 360° using tool-free pivoting cutting head.
QuickIN rapid change system.
High cutting speed.
Motor with outstanding performance and stability.
Chip protection mesh on vent slots.
16 ft. cable.
Stainless steel up to 24 gauge.

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Power consumption: 350 Watts

Power output: 210 Watts

Strokes: 1,500 rpm

Cutting speed: 8.9 ft/min

Cable with plug: 16 ft

Weight according to EPTA: 4.2 lbs

Steel 56,000 lbf/in²: 16 gauge

Steel 84,000 lbf/in²: 19 gauge

Steel 112,000 lbf/in²: 22 gauge

Non-ferrous metals up to 35,000 lbf/in²: 13 gauge

Immersion Ø with die: 7/8 in

Cutting width: ³/16 in

Radius of smallest curve (inside/outside): 1 ³/16 /1 ³/8 in

Price Includes:

1 cutting head

1 die for trapezoidal sheet metal (3 13 09 122 00 5)

1 punch (6 36 02 049 00 8)

1 wear plate

Additional Information

Manufacturer: Fein Tools
