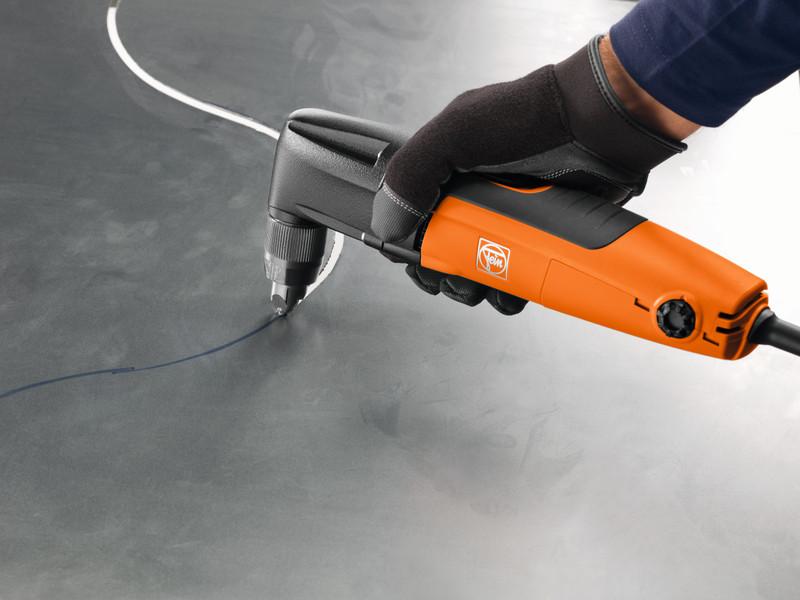

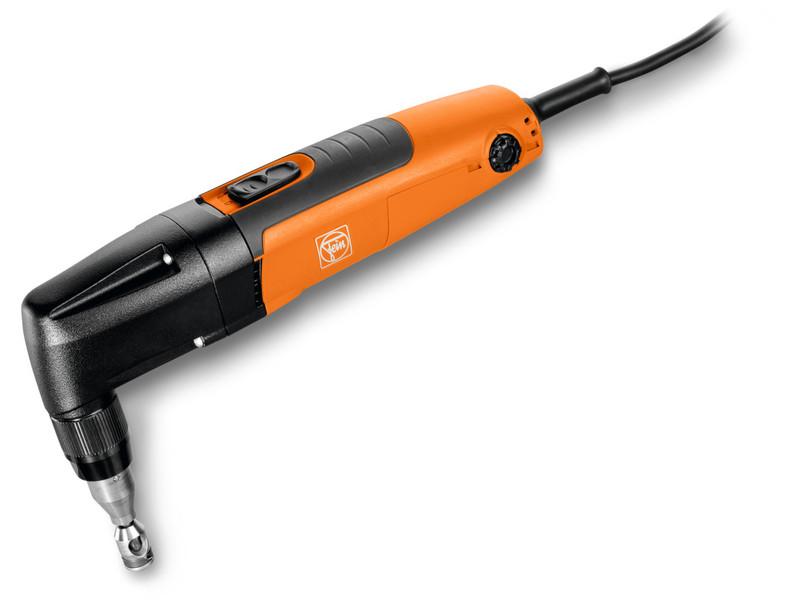

High curve precision due to special cutting head geometry. Nibbler can turn on the spot.
Especially well-suited for cutting edged sheet metal with a minimum bend radius of 1/8 in.
Cutting direction setting can be changed in 45° increments up to 360° using tool-free pivoting cutting head.
QuickIN rapid change system.
Optimal ergonomics.
Motor with outstanding performance and stability.
Ideal for cut-outs.
Optimally suited for template cuts.
Chip protection mesh on vent slots.
16 ft. cable.
Stainless steel up to 20 gauge.

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Power consumption: 350 Watts

Power output: 210 Watts

Strokes: 1,000 rpm

Cutting speed: 8.9 ft/min

Cable with plug: 16 ft

Weight according to EPTA: 4.0 lbs

Steel 56,000 lbf/in²: 14 gauge

Steel 84,000 lbf/in²: 17 gauge

Steel 112,000 lbf/in²: 19 gauge

Non-ferrous metals up to 35,000 lbf/in²: 13 gauge

Plastics: 12 gauge

Immersion Ø with die: ¹¹/16 in

Cutting width: 5/16 in

Radius of smallest curve (inside/outside): ³/16/0 in

Price Includes:

1 cutting head

1 die (3 13 09 040 0 02)

1 punch (6 36 02 051 00 9)

Additional Information

Manufacturer: Fein Tools
