CWS-200

CWS-200

ICS

(click image to enlarge)
Quick Overview
    FEATURES

  • Mounts to 360 industry standard track
  • Specialized sandwich segment chain
  • Jet-Fit® Guidebar

    • BENEFITS

  • Confined spaces
  • Deep corner cuts
  • Operator safety
  • Improved time to complete job
  • No blade changes in deep cuts
  • Easier/cleaner core removal
  • Accuracy of cut vs. hand-held
  • Less operator effort
  • Chains lighter than blades
  • Easier mobility on & off the jobsite
  • Simplified set-up and attachment

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details

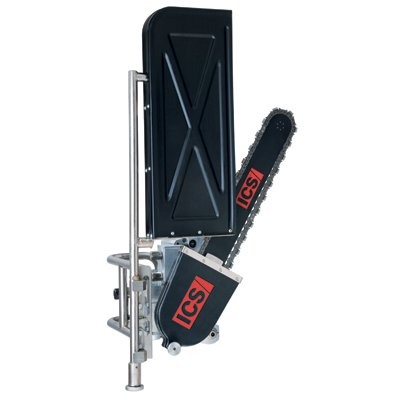

The CWS-200 Chain Wall Saw combines ICS Diamond Chain Technology (DCT™) with a mechanized, rack-mounted, Hydraulic powered design for Professional Sawing & Drilling Contractors, allowing deep cutting without overcuts and less overall effort than other methods.

The CWS-200 is compact and lightweight (only 75 lbs), and provides a one-tool approach to completing a full opening with square corners.

The ability to mount the system to industry standard 360 track, combined with the capabilities of a chainsaw offers the advantages of increased cutting speed, increased chain life, improved ergonomics and significantly reduced operator effort.

PRODUCT SPECIFICATIONS

BASE MACHINE W/OUT BAR, CHAIN, & GUARD 75 lbs (34 kg)
12" GUARD 9 lbs (4 kg)
18" GUARD 11 lbs (5 kg)
HYDRAULIC SUPPLY 25 gpm (95 lpm) @ 2,500 psi (172.5 bar)
TORQUE 284 in-lbs (32 Nm)
HORSEPOWER 36.5 hp (27.2 kW)
WATER SUPPLY Minimum 20 psi (1.5 bar)
OPERATING SPEED 8,100 rpm (avg. free running)
Additional Information
Manufacturer: ICS
