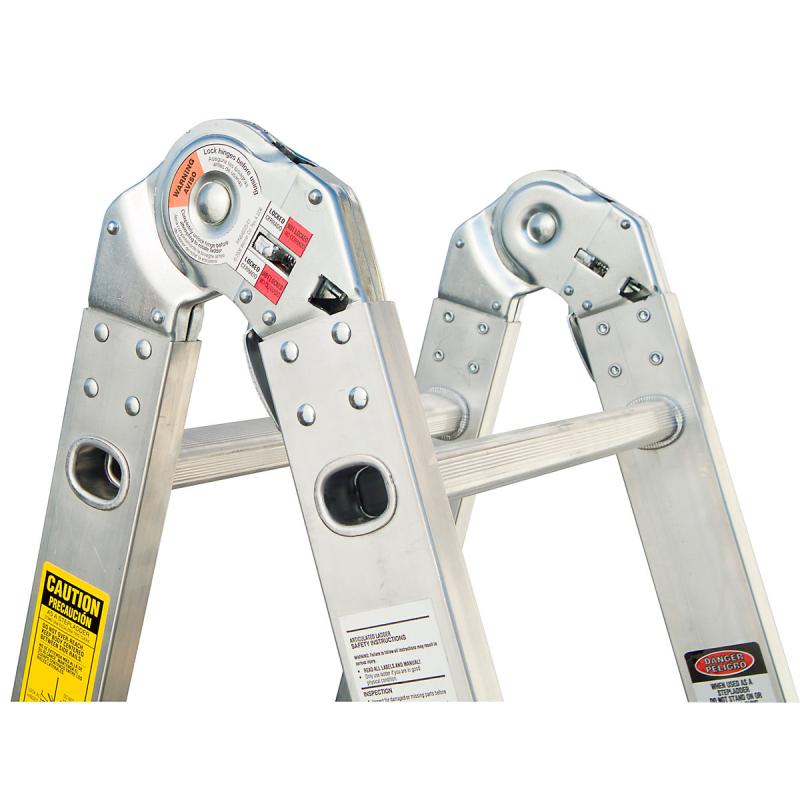

3-position Multi-Lok Hinge allows for 18 positions or applications
Slip-resistant multi-directional rungs
Slip-resistant feet
Comes fully assembled except for bolt-on base
18 positions:1. Double stepladder 2. Stepladder 3. Stairwell ladder 4. Multi-shelf 5. Stand-off ladder 6. Fully extended straight ladder 7. 1/2 & 3/4 length straight ladder 8. Self-supporting scaffold 9. Extended span scaffold 10. Stairwell scaffold
Shippable by ground parcel services
Designed for one or two person jobs

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

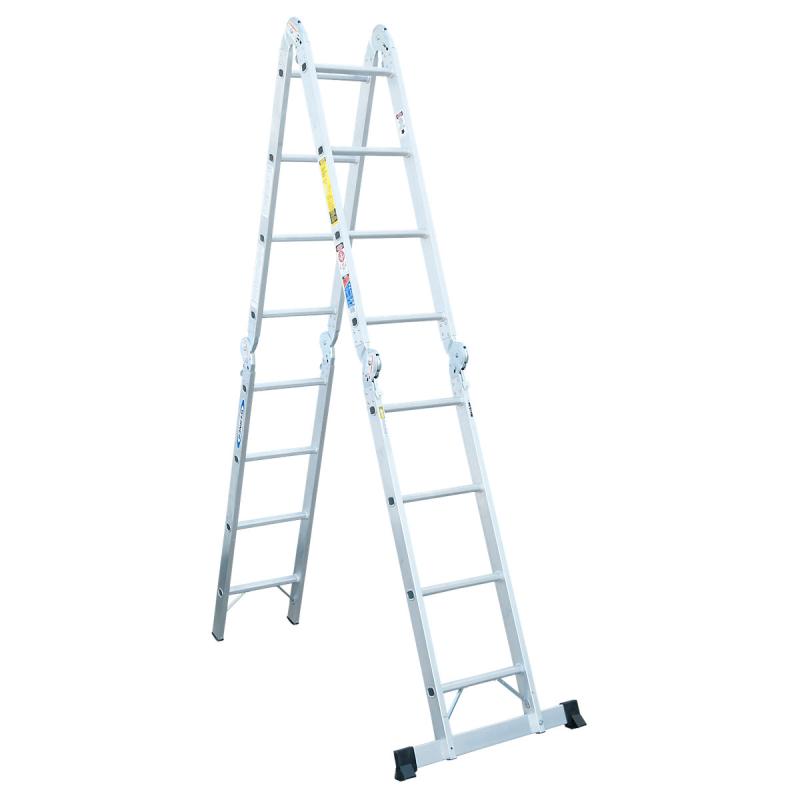

The M1 Series folding aluminum MultiLadder is designed for one or two person jobs. This Type IA ladder with a duty rating of 300 lbs., has a 3-position Multi-Lok® Hinge that allows for 18 positions or applications. Includes slip-resistant, multi-directional rungs and feet.

Performance Overview

Load Capacity	Type	Material	Number of Positions
300 lbs.	Type IA Duty Rating	Aluminum	18

Specifications

Load Capacity: 300 lbs.
Type: Type IA Duty Rating
Material: Aluminum
Stepladder Height: 8'
Extension Height: 16'
Scaffold Height: 4'
Closed Height: 52-5/8"
Number of Positions: 18
Approx. Cu. Ft. Per Unit: 5.2
Approx. Shipping Wt. Lbs.: 39.5

Dimensions

Rails Dimension: 2-1/2"
Flange Deminsion: 1"
Rungs Dimension: 1-1/4"

Additional M1 Series Models

Model No.	Stepladder Height	Extension Height	Stair Height	Scaffold Height	Number of Positions	Approx. Cu. Ft. Per Unit
M1-6-12	6'	12'	3'	40-5/8"	4.0	33.5
M1-8-16	8'	16'	4'	52-5/8"	5.2	39.5

Additional Information

Manufacturer: Werner Co.
