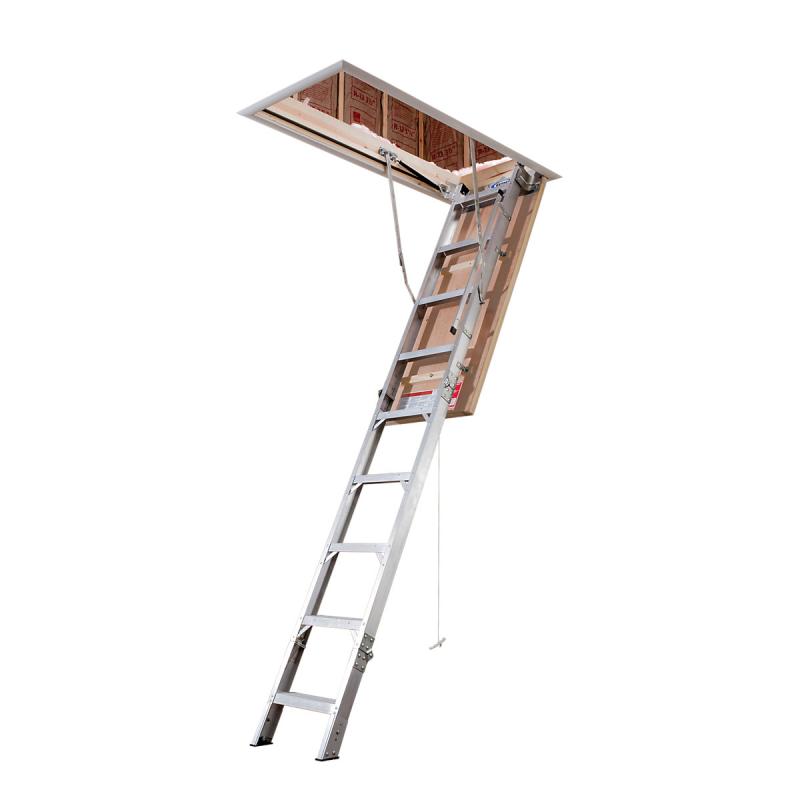

AE2210 22.5" W x 54" L x 8-10' Ceiling Energy Seal Aluminum Attic Ladder

AE2210

Werner Co.

The AE Energy Seal Universal attic ladder provides 5 times more energy efficiency than a traditional attic ladder. Insulated door and built-in weatherstripping provide energy saving benefits. Lightweight, yet carries a duty rating of 375 pounds. Strut design eliminates springs and allows for a wide access opening. Easy to open and close. Available for standard size openings, with ceiling heights from 8’ to 10’.

(click image to enlarge)
Quick Overview

    Features:
    • Innovative air locking design creates a tight seal, reducing drafts and air leakage up to 60%
    • Wide access opening
    • Easy to open, smooth closing
    • Fits all ceiling heights from 8' to 10'
    • Slip-resistant steps
    • Non-marring feet
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details
Performance Overview
SizeLoad CapacityMaterial
8'-10'375 lbsAluminum

Specifications
  • Size: 8'-10'
  • Floor to Ceiling Height Range: 7'8" to 10'3"
  • Rough Opening Width x Length: 22-1/2" x 54"
  • Load Capacity: 375 lbs
  • Ladder Width: 14-1/8"
  • Landing Space Range: 4' - 5' 3"
  • Swing Clearance: 5' 10"
  • Foot Material: Aluminum with rubber bottom
  • Locking Device: Gas Strut
  • Opening Device: Rope
  • Door Material: Insulated plywood
  • Frame Material: Pine
  • Full Width Door hinge: Yes
  • Metal-to-Metal Rail hinge: Yes
  • Requires Cutting Foot Angle: No
  • Number of People for Installation: 2
  • Certifications: ANSI A14.9 (2010)
  • Approx. Cu. Ft. Per Unit: 7.6
  • Approx. Shipping Wt. Lbs.: 55.5

Dimensions
  • Rail Size: 1-1/2" x 2-3/8"
  • Flange: 1-1/2"
  • Step Length: 12-1/16"
  • Step Width: 3"

Additional Information
Manufacturer: Werner Co.
