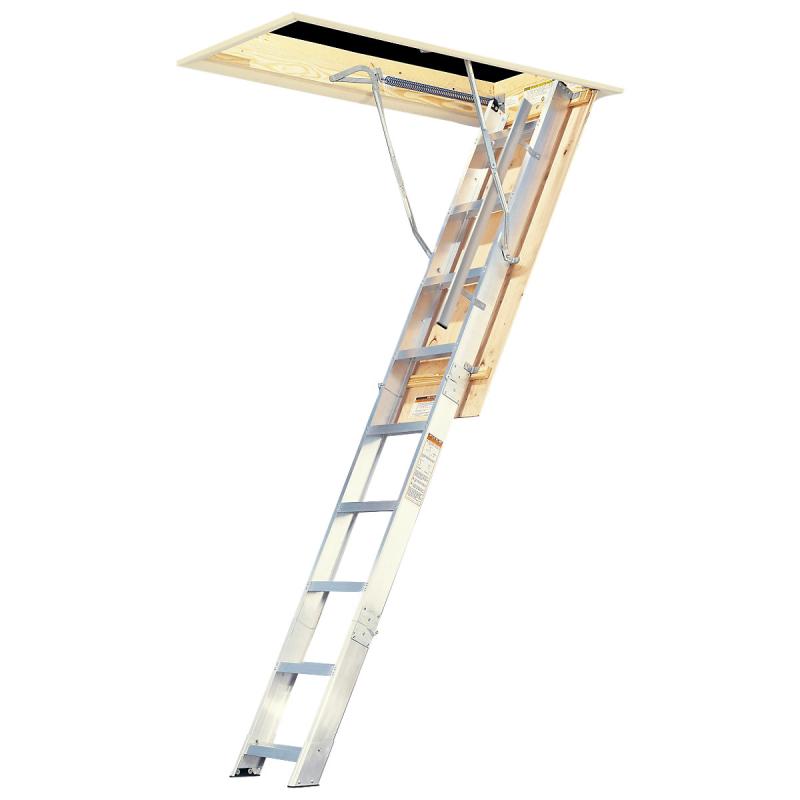

A2512 25.5" W x 64" L x 12' Ceiling Aluminum Attic Ladder

A2512

Werner Co.

The A series aluminum attic ladders have a duty rating of 300 pounds yet are lightweight and easy to open, close and install. The aluminum side rails are attractive and will not splinter, decay or rust. The grooved steps are slip resistant, and heavy duty hinges ensure a rigid structure. Adjustable feet make installation easy and ensure a correct fit. The high quality door can be painted or stained. The unique design adds toe clearance for comfortable climbing. The counter-balance mechanisms eliminate sag and springiness.

(click image to enlarge)
Quick Overview

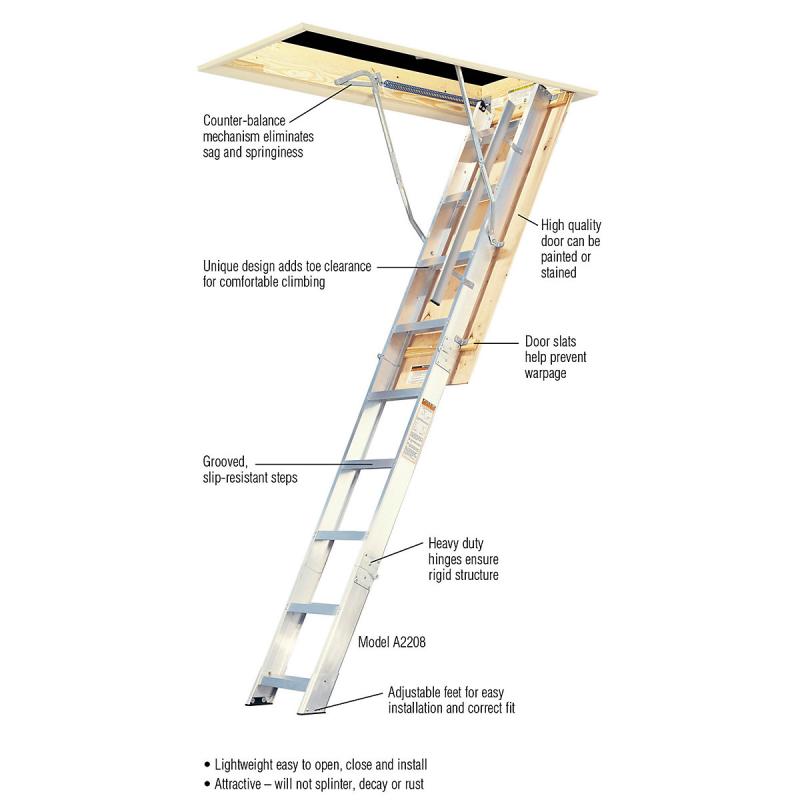

    Features:
    • Counter-balance mechanism eliminates sag and springiness
    • High quality door can be painted or stained
    • Unique design adds toe clearance for comfortable climbing
    • Door slats help prevent warpage
    • Grooved,slip-resistant steps
    • Heavy duty hinges ensure rigid structure
    • Adjustable feet for easy installation and correct fit
    • Lightweight easy to open, close and install
    • Attractive – will not splinter, decay or rust
    • To adjust to 10’5” height, cut off 12” from bottom
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details
Performance Overview
SizeLoad CapacityMaterial
8'-10'300 lbsAluminum

Dimensions
  • Rail Size: 1" x 3-1/2"
  • Flange: 1"
  • Step Length: 15-1/2"
  • Step Width: 3-11/16"

Additional AH Series Models
Model No.SizeFloor to Ceiling Height RangeRough Opening Width x LengthLadder WidthSwing Clearance
A251010'8'9" to 10'4"25-1/2" x 54"6' 1"6' 6"
A251212'10'5" to 12'25-1/2" x 64"7'7' 3"

Specifications
  • Size: 12'
  • Floor to Ceiling Height Range: 10'5" to 12'
  • Rough Opening Width x Length: 25-1/2" x 64"
  • Load Capacity: 300 lbs
  • Ladder Width: 17-5/8"
  • Landing Space Range: 7'
  • Swing Clearance: 7' 3"
  • Foot Material: Aluminum with rubber bottom
  • Locking Device: Spring
  • Opening Device: Rope
  • Door Material: Plywood
  • Frame Material: Pine
  • Full Width Door hinge: Yes
  • Metal-to-Metal Rail hinge: Yes
  • Requires Cutting Foot Angle: No
  • Number of People for Installation: 2
  • Certifications: ANSI A14.9 (2010)
  • Approx. Cu. Ft. Per Unit: 10.5
  • Approx. Shipping Wt. Lbs.: 74
Additional Information
Manufacturer: Werner Co.
