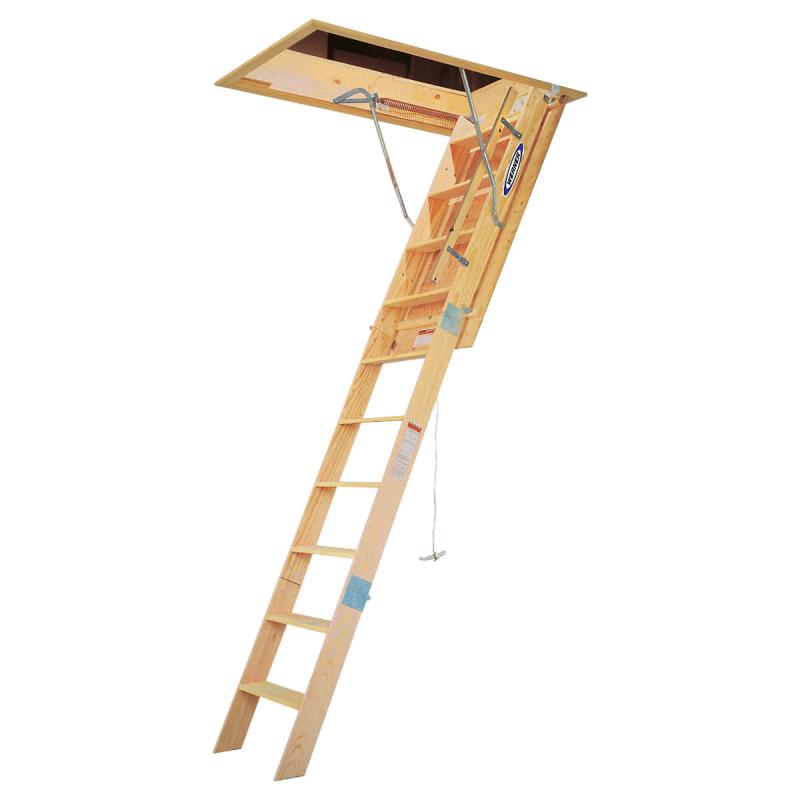

WH2508 25" W x 54" L x 8' Ceiling Heavy Duty Wood Attic Ladder

WH2508

Werner Co.

(click image to enlarge)
Quick Overview

    Features:
    • Counter-balance mechanism eliminates sag and springiness
    • Full wrap-around door hinge minimizes heat loss
    • High quality door can be painted or stained
    • Hinges butt metal to metal to maintain ladder rigidity
    • Pull string allows for easy operation
    • Easy to open and close
    • Fully assembled and ready to install
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details
Performance Overview
SizeLoad CapacityMaterial
8'350 lbsWood

Specifications
  • Size: 8'
  • Floor to Ceiling Height Range: 7' to 8'9"
  • Rough Opening Width x Length: 25" x 54"
  • Load Capacity: 350 lbs
  • Ladder Width: 16-3/4"
  • Landing Space Range: 4' 8"
  • Swing Clearance: 5' 2"
  • Foot Material: wood
  • Locking Device: Spring
  • Opening Device: Rope
  • Door Material: Plywood
  • Frame Material: Pine
  • Full Width Door hinge: Yes
  • Metal-to-Metal Rail hinge: Yes
  • Requires Cutting Foot Angle: Yes
  • Number of People for Installation: 2
  • Certifications: ANSI A14.9 (2010)
  • Approx. Cu. Ft. Per Unit: 12
  • Approx. Shipping Wt. Lbs.: 62.5

Dimensions
  • Rail Size: 3/4" x 4-1/2"
  • Step Length: 15-1/4"
  • Step Width: 4-1/2"
  • Grooved Steps-Actual Lumber Size: 3/4" x 4-1/2"

Additional WH Series Models
Model No.SizeFloor to Ceiling Height RangeRough Opening Width x LengthLadder WidthLanding Space Range
WH22088'7' to 8'9"22-1/2" x 54"14-1/4"4' 8"
WH221010'8'9" to 10'3"22-1/2" x 54"14-1/4"5' 4"
WH25088'7' to 8'9"25" x 54"16-3/4"4' 8"
WH251010'8'9" to 10'3"25" x 54"16-3/4"5' 4"
WH30088'7' to 8'9"30-1/2" x 54"22-1/4"4' 8"
WH301010'8'9" to 10'3"30-1/2" x 54"22-1/4"5' 4"
Additional Information
Manufacturer: Werner Co.
