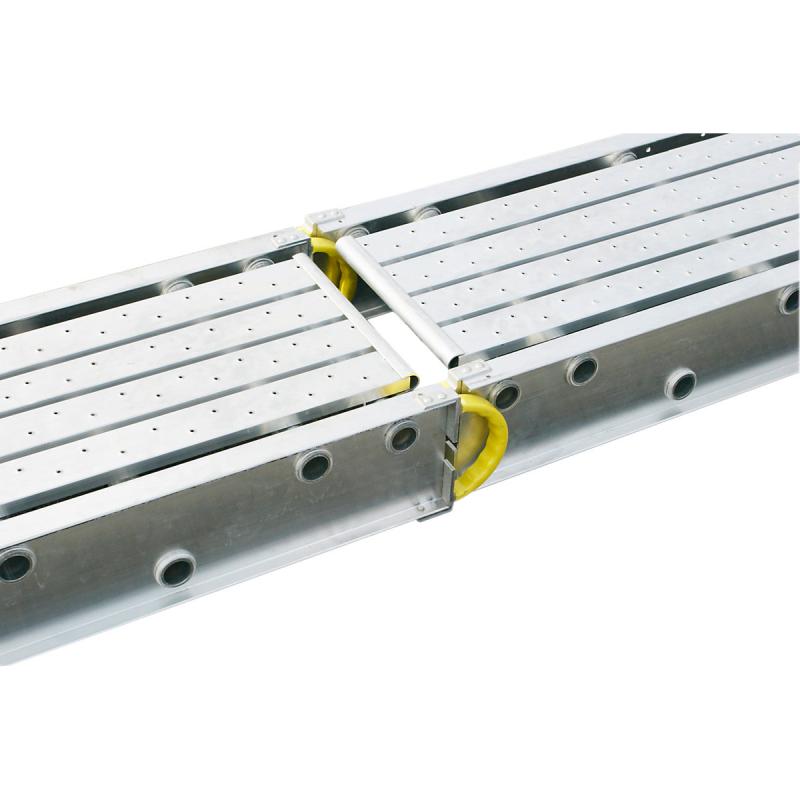

The WNS series of nestable stages provide consistent rail depths regardless of stage length, reducing trip hazards when making a continuous work platform. Made of aluminum, the handles nest inside of each other to minimize gaps between walkways. 2 person, 500 lbs. rated. Available in 14", 20", and 24" widths in lengths from 12' to 24'.

(click image to enlarge)

Quick Overview

Features include:

Lightweight aluminum with vinyl-covered handles that nest to create continuous work platform
Available in 14", 20", and 24" widths, in lengths from 12' to 24'
Ideally suited for pumpjack applications
2-Person - 500 lbs. Rated
Continuous Work Platform Reduces Trip Hazard

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications

Side Rail Length: 16'

Platform Width: 20"

Load Capacity: 500 lbs.

Certifications: ANSI A10.8 (2001); OSHA

Approx. Cu. Ft. Per Unit: 13.6

Approx. Shipping Wt. Lbs.: 75

Dimensions

Side Rail Depth: 6"

Additional WNS Series Models:

Model No.	Side Rail Length	Platform Width	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
WNS-2412	12'	14"	7.2	46
WNS-2416	16'	14"	9.6	63
WNS-2420	20'	14"	12	86
WNS-2424	24'	14"	14.4	115
WNS-2512	12'	20"	10.2	54
WNS-2516	16'	20"	13.6	75
WNS-2520	20'	20"	17	103
WNS-2524	24'	20"	20.4	122
WNS-2612	12'	24"	12	62
WNS-2616	16'	24"	16	81
WNS-2620	20'	24"	20	116
WNS-2624	24'	24"	24	139

Additional Information

Manufacturer: Werner Co.
