The D1500-1 series are one-section aluminum straight ladders with a duty rating of 300 pounds. The exclusive ALFLO rung joint means TWIST-PROOF performance every time. The side rails are extra heavy duty I-beam rails and the aluminum D Traction-Tred rungs are slip resistant. The rugged shoe rests flat or is held in spur position with the Shu-Lok feature for use on hard or penetrable surfaced.

(click image to enlarge)

Quick Overview

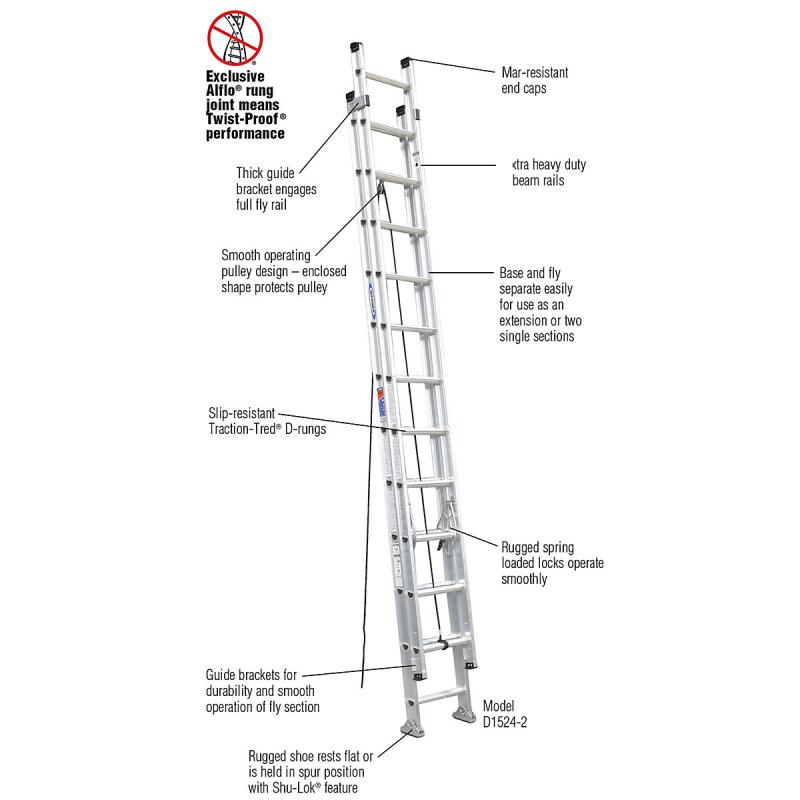

Features include:

Exclusive ALFLO rung joint means TWIST-PROOF performance
1-3/4" Slip-resistant Traction-Tred D-rungs
Heavy Duty extruded rung locks are spring loaded to operate smoothly
Guide brackets mounted at the top and bottom of the rail for durability and smooth operation of fly section
Extra heavy duty I-beam rails
Rugged spring loaded locks operate smoothly
Rugged shoe rests flat or is held in spur position with Shu-Lok feature
Stacked rail design provides increased rung width on fly section
Mar-resistant end caps

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3"

Flange Dimension: 1-1/8"

Rung Dimension: 1-3/4"

Base Width: 18-1/8" outside rails

Specifications

Size: 16'

Reach Height: 18'

Load Capacity: 300 lbs.

Type: Type IA Duty Rating

Performance Rating: 4 Star

Material: Aluminum

Rung Type: D

Foot Material: Slip-resistant pad

Number of Sections: 1

Certifications: ANSI A14.2 (2007); OSHA

Approx. Cu. Ft. Per Unit: 7.1

Approx. Shipping Wt. Lbs.: 32.5

Additional D1500-1 Series Models:

Model No.	Size	Reach Height	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
D1508-1	8'	11'	3.6	14.5
D1510-1	10'	13'	4.5	17.5
D1512-1	12'	15'	5.4	21.5
D1514-1	14'	17'	6.2	27
D1516-1	16'	18'	7.1	32.5
D1518-1	18'	20'	8	38.5
D1520-1	20'	22'	8.9	43.5

Additional Information

Manufacturer: Werner Co.
