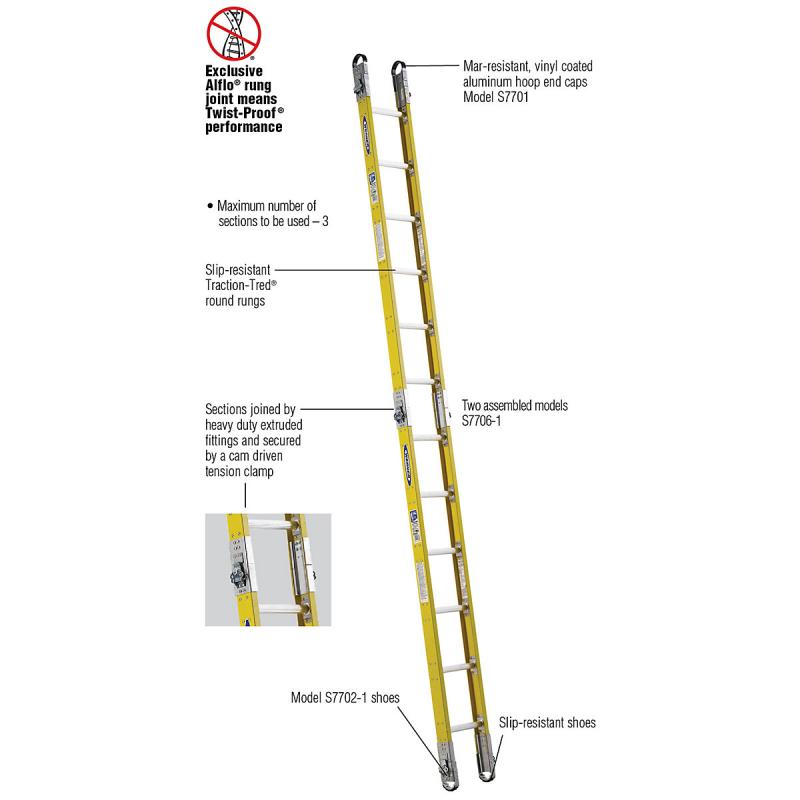

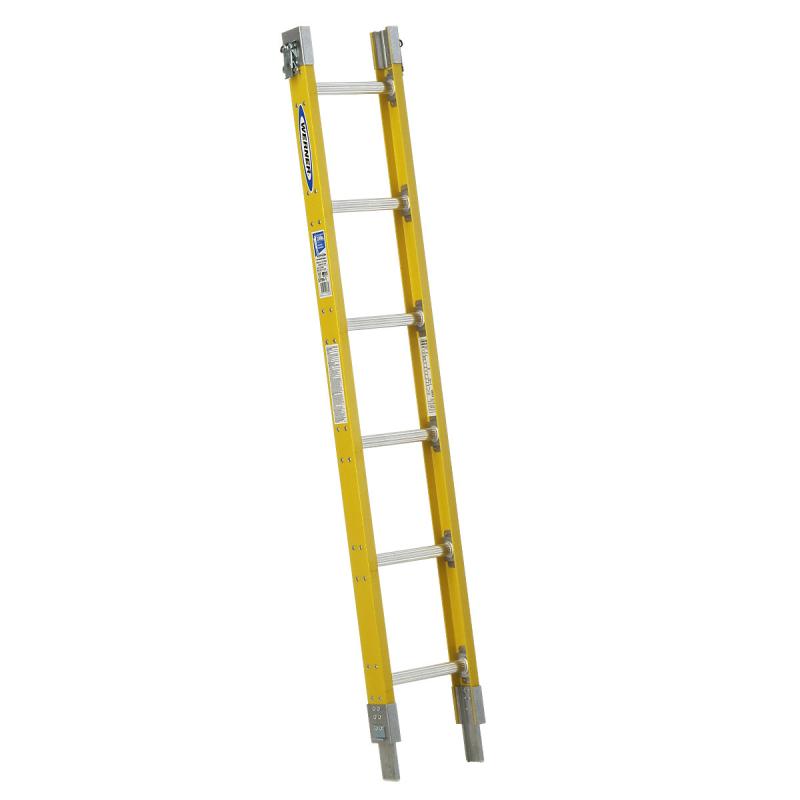

The S7700 series are interchangeable parallel sectional ladders that are ideal for manhole use and are easy to transport. The sections are joined by heavy duty extruded fittings and secured by a cam driven tension clamp. TRACTION-TRED round rungs are slip resistant, and the exclusive ALFLO rung joint means TWIST-PROOF performance every time. A maximum of three 6' sections can be used. These ladders are made of non-conductive fiberglass rails and have a duty rating of 250 pounds.

(click image to enlarge)

Quick Overview

Features include:

Up to 3 sections can be connected to create a straight ladder
Sections joined by heavy duty extruded fittings and secured by a cam driven tension clamp
Exclusive ALFLO rung joint means TWIST-PROOF performance
Slip-resistant Traction-Tred round rungs
Must be used in combination with S7702-1 or S7702-2 slip-rsistant shoes
Must be use with S7701 end caps

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3-5/16"

Flange Dimension: 1-3/16"

Rung Dimension: 1-1/4"

Base Width: 12" wide

Specifications

Load Capacity: 250 lbs.

Type: Type I Duty Rating

Performance Rating: 3 Star

Material: Fiberglass

Rung Type: Round

Foot Material: Slip-resistant pad

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 2.1

Approx. Shipping Wt. Lbs.: 15.5

Additional Information

Manufacturer: Werner Co.
