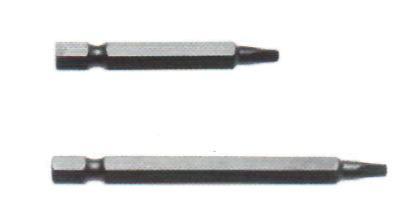

Hex Shank Insert Bits 80-R

80-R

Qualtool, Inc.

Turned down body style available upon request. Signify by adding an "S" to part number

(click image to enlarge)
Quick Overview
  • 1/4" Hex Shank Insert Bits
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details
Square Bit ChartPOINT #0 - FOR SCREWS #3 & #4
POINT #1 - FOR SCREWS #5 THRU #7
This brief chart will help you match the screw size to the proper Square point. POINT #2 - FOR SCREWS #8 THRU #10
POINT #3 - FOR SCREWS #12 THRU #14 AND 1/4

Overall LengthPoint SizePart No.
1-15/16"080-0R
1-15/16"180-1R
1-15/16"280-2R
1-15/16"380-3R
2-3/4"182-1R
2-3/4"282-2R
2-3/4"382-3R
3"184-1R
3"284-2R
3"384-3R
3-1/2"186-1R
3-1/2"286-2R
3-1/2"386-3R
6"188-1R
6"288-2R
6"388-3R
Additional Information
Manufacturer: Qualtool, Inc.
