Details

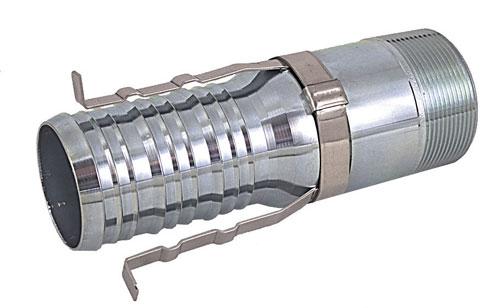

The exclusive design of the Tri-Lokt Hose Nipple is the answer for heavy duty industrial hose applications. The Tri-Lokt Hose Nipple should be used when a positive lock is required between the clamp and the nipple. The locking yoke or tie strip assembly together with the BAND-IT clamp accommodates the various wall thicknesses of different types of hoses.

End Barb Provides Excellent Holding Strength.

Secure Lock Due To A Unique Yoke Or Tie Strip Assembly Which Is Clamped To The Hose.

Low Profile.

Ease Of Installation.

Product	Material	NPT Inches	Shank Length		Hose Inside Diameter		No. of Clamps Per Nipple	Pkg Quantity	Package Weight
Product	Material	NPT Inches	Inches	mm	Inches	mm	No. of Clamps Per Nipple	Pkg Quantity	Lbs.	Kg
H60088	Plated Steel	1 1/4	2.75	69	1 1/4	32	4	Each	1.3	0.6
H61088	Plated Steel	1 1/2	2.75	69	1 1/2	38	4	Each	1.5	0.7
H62088	Plated Steel	2	2.75	69	2	51	4	Each	2.3	1.0
H63088	Plated Steel	21/2	4.50	114	21/2	64	6	Each	3.5	1.6
H64088	Plated Steel	3	4.50	114	3	76	6	Each	4.6	2.1
H65088	Plated Steel	4	4.50	114	4	102	6	Each	6.4	2.9
H65688	Plated Steel	5	6.50	165	5	127	8	Each	11.5	5.2
H65888	Plated Steel	6	8.00	203	6	152	10	Each	15.9	7.2
S60088	316 SS	1 1/4	2.75	69	1 1/4	31	4	Each	0.9	0.4
S61088	316 SS	1 1/2	2.75	69	1 1/2	38	4	Each	12	0.5
S62088	316 SS	2	2.75	69	2	50	4	Each	1.5	0.7
S64088	316 SS	3	4.63	117	3	76	6	Each	5.4	2.4
S65088	316 SS	4	4.63	117	4	101	6	Each	6.5	2.9

Only Stainless Steel Band-It Clamps Should Be Used With Tri-Lokt Hose Nipples.

Hose And Nipples Should Never Be Operated In Excess Of The Maximum Working Pressure Established By The Hose Manufacturer.

Replacement Tri-Lokt Stainless Steel Tie Strip Kits And Yokes Available. Contact Band-It For More Information.

Finish May Be Clear Zinc Or Dichromate Zinc Plating On The Carbon Steel Nipple.

Recommended Clamp Widths for BAND-IT Hose Nipples

Hose ID		Band Clamp Width
Inches	(mm)	Inches	(mm)
1/2 to 5/8	13 to 16	3/8 to 1/2	6.35 pr 12.70
3/4 to 1 1/2	19 to 38	1/2 to 3/4	12.70 to 19.05
2 to 6	51 to 152	3/4	19.05

For maximum holding power, BAND-IT recommends the ULTRA-LOK Clamping System for use with all hose fittings larger than 2" in diameter.

Additional Information

Manufacturer: Band-It
