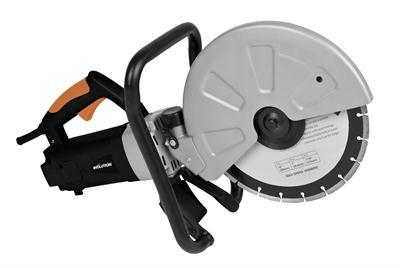

Electric Disc Cutter

DISCCUT1

Evolution Power Tools

Requires 20 Amp Power Source With Perpendicular Electrical Plug Outlet
(click image to enlarge)
Quick Overview
  • Easily cut concrete, stone, brick, paving & other stone materials.  Alson cuts steel rebar and mesh reinforcements.
  • 2400W hi-torque heavy duty motor.  Easy-to-use, maintenance free.
  • Ergonomic soft-grip suppot handles, ideally positioned to aid accuracy.
  • Spindle lock mechanism means blade replacement is quick and simple.
  • Fully adjustable safety guard allows horizontal and vertical cutting.
  • Electric motor means no harmful fumes are emitted.
  • 4' maximum cutting depth.
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details

Technical Specifications:

  • Motor 120v ~ 60Hz - 2400W
  • Amps- 20A
  • Horse Power - 1.4HP
  • Maximum Depth of Cut - 4'
  • Speed (No Load) - 5000 RPM
  • Maximum Duty Cycle - 20 mins
  • Sound Pressure Level (No Load) - 102.4 dB(A)
  • Vibration Level - 4.8 m/s2
  • Tool Weight - 21 lbs
  • Tool Dimensions (H x W x L) - 18 1/4' x 22 11/16' x 15 3/8'

Blade Specifications:

  • Diameter - 12'
  • Bore - 1'
  • Kerf (Thickness) - .078' (2.0mm)

Supplied with:
12' Diamond Blade, Dust Extraction Port, 22.2mm &1' Flanges, Spanner, Safety Goggles, Ear Plugs, Manual.

Additional Information
Manufacturer: Evolution Power Tools
