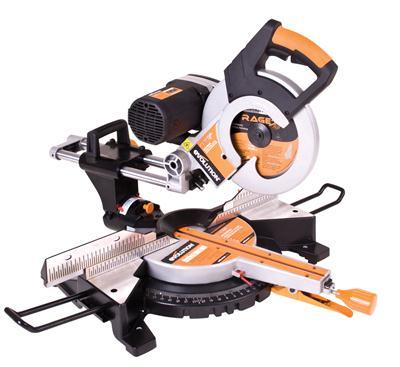

Multipurpose; Cuts Steel, Aluminum, Wood & Plastic. Easily cuts wood with nails.
No coolant required and produces virtually no sparks.
Compound tilt & slide mechanism.
Extra large base for cutting stability.
Extendable fence guard for long workpieces.
RAGE3 blade can produce up to 750 cuts per blade in 2' mild steel box section.
12 5/8' slide action.
Last guidance for optimum accuracy.

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Technical Specifications:

Motor 120v ~ 60Hz - 2000W (Soft Start)
Amps - 15A
Horse Power - 2.5HP
Speed (No Load) - 2500 RPM
Maximum Depth of Cut (90° Bevel) - 3 1/4'
Maximum Depth of Cut (45° and -45° Bevel) - 2' | 1 1/4'
Maximum Width Cut (90° Miter) - 12 5/8'
Maximum Width Cut (45° and -45° Miter) - 8 3/4'
Maximum Miter Degree - 55° left / 55° right
Maximum Duty Cycle - 30 mins
Sound Pressure Level (No Load) - 94.0 dB(A)
Tool Weight - 46.5 lbs
Tool Dimensions (H x W x L) - 23 5/8' x 20' x 30 3/4'

Blade Specifications:

Diameter - 10'
Bore - 1'
Kerf (Thickness) - .078' (2.0mm)
Number of Teeth - 28

Supplied with:
RAGE3 Multipurpose TCT Blade, Box Spanner, 2 x Work Piece Supports & End Stop, Spare Carbon Brush Set, Top Clamp, Dust Bag, Safety Goggles, Ear Plugs & Manual.

Additional Information

Manufacturer: Evolution Power Tools
