Power-Stud Plus SD1

7400SD

Powers Fasteners

Wedge Expansion Anchor For Use With Strength Design
(click image to enlarge)
Quick Overview

  • Structural Connections, i.e., Beam And Column Anchorage
  • Safety-Related Attachments
  • Interior Applications / Low Level Corrosion Environment
  • Tension Zone Applications, i.e., Cable Trays And Strut, Pipe Supports, Fire Sprinkl
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details

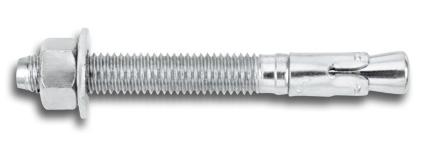

Power-Stud+ SD1       Wedge Expansion Anchor

Product Description :
The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansionanchor which is designed for consistent performance in cracked and uncracked concrete.Suitable base materials include normal-weight concrete, structural sand-lightweightconcrete and concrete over steel deck. The anchor is manufactured with a zinc platedcarbon steel body and expansion clip. Nut and washer are included.

General Applications and Uses :

  • Structural Connections, i.e., Beam And Column Anchorage
  • Safety-Related Attachments
  • Interior Applications / Low Level Corrosion Environment
  • Tension Zone Applications, i.e., Cable Trays And Strut, Pipe Supports, Fire Sprinklers
  • Seismic And Wind Loading


  • Features and Benefits :
    + Consistent performance in high and low strength concrete
    + Nominal drill bit size is the same as the anchor diameter
    + Anchor can be installed through standard fixture holes
    + Length ID code and identifying marking stamped on head of each anchor
    + Anchor design allows for follow-up expansion after setting under tensile loading

    Approvals and Listings :
    International Code Council, Evaluation Service (ICC-ES), ESR-2818 for concreteCode compliantwith the 2009 IBC, 2009 IRC, 2006 IBC, 2006 IRC, 2003 IBC, 2003 IRC and 1997 UBCInternational Code Council, Evaluation Service (ICC-ES), ESR-2966 formasonry Code compliant with the2006 IBC, 2006 IRC, 2003 IBC, 2003 IRC, 2000 IBC, and 1997 UBCTested in accordance with ACI 355.2 and ICC-ES AC193 for use in structural concrete under the designprovisions of ACI 318 (Strength Designmethod using Appendix D)Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked anduncracked concrete including seismic and wind loading (Category 1 anchors)FMGlobal (FactoryMutual) - File No. 3033795, 3/8” and 1/2” diameters Pipe hanger components forautomatic sprinkler systemsUnderwriters Laboratories (UL Listed) - File No. EX1289. See listing for sizes.

    Guide Specifications :
    CSI Divisions: 03151-Concrete Anchoring, 04081-Masonry Anchorage and 05090-Metal Fastenings.Expansion anchors shall be Power-Stud+ SD1 as supplied by Powers Fasteners, Inc., Brewster, NY.Anchors shall be installed in accordance with published instructions and the Authority HavingJurisdiction.


    View Product Specification

    View Submittals
    English

    View Product Profiles
    Sky Harbor International Airport, Phoenix, AZ
    View Approvals

    Spec. Writting Tools
    Additional Information
    Manufacturer: Powers Fasteners
