Home / Categories / Electrical Products and Equipment / Wire and Cable / Bus Drop and Tray Cable /

Search:

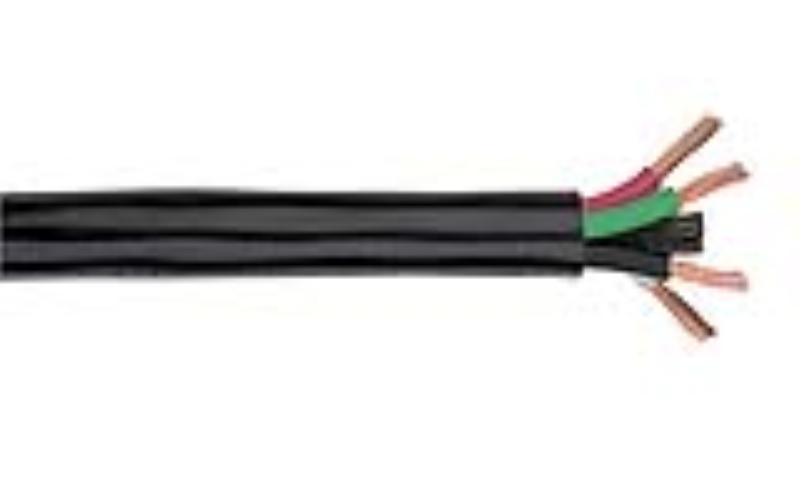

MCM PPE ROHS

Coleman Cable - CCI

(click image to enlarge)

SKU / Product Info	Quantity
030250 250-3
030252 350-3
030254 500-3
030270 250-4
030272 450-4
030274 500-4
30250 250-3 MCM
30252 350-3 MCM
30254 500-3 MCM
30270 250-4 MCM
30272 350-4 MCM
30274 500-4 MCM
30286 1/0-5
30287 2/0-5
30288 3/0-5
30289 4/0-5

Quick Overview

Features :-

Extremely durable and flexible TPE jacket
Lighter in weight than other W, G or G-GC cables
Cable is oil, sunlight and water-resistant. Single conductor features a dual extruded jacket with a mesh between the jackets for extra toughness

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters:

Electrical Properties:

Conductor	250 AWG Bare Copper
Stranding	61x7/.242
Insulation Material	TPE
Insulation Thickness	0.100'' Nom.
Insulated Conductor Diameter	0.853'' Nom.
Number of Conductors	3
Lay Length	18.00'' Nom.
Filler Type	Non-Wicking Polypropylene
Separator/Wrap	Paper
Jacket Material	TPE
Jacket Thickness	0.265'' Nom.
Overall Cable Diameter	2.390'' Nom.
Approximate Cable Weight	3747.2 Lbs/1M' Nom
Flame Rating	UL/CSA Horizontal Flame TestMSHA

Temperature Rating	-50C to 90CvDRY, 75C WET
Operating Voltage	2000V RMS Max
DC Resistance per Conductor @ 20C	0.0416 Ohms/1M
Ampacity per NEC Table 400-5(b)	402 amps/cond.(Assume two current carrying conductors)

Additional Information

Manufacturer: Coleman Cable - CCI
