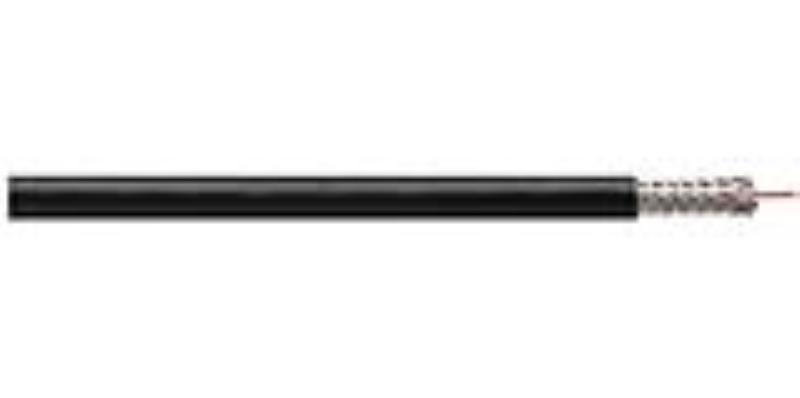

Coleman Cables Rg59 22Ccs 40 Al

92006

Coleman Cable - CCI

Rg59 22Ccs 40 Al
(click image to enlarge)
Quick Overview
    Features & Applications:-
  • RG59 Type
  • PE Dielectric
  • PVC Jacket
    • Interested in this item or want more information?
    Monday—Friday: 6:30am till 4:30pm EST
    Saturday—Sunday: Closed
    Phone: 1-800-796-4716
    Email: sales@tatool.net

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 22 AWG (1/.025) Copper Clad Steel - 0.025
    Dielectric Foam Polyethylene color natura0.0610.146
    1st Shielding:Bonded Aluminum/Polyester/Aluminum Tape plus 40% Aluminum Braid -0.182
    JacketPVC0.0300.242
    VALUE*
    Conductor Resistance (ohms/mft) - 75
    Capacitance (Max. pF/ft) - 17
    Velocity of Propagation (%) - 80
    Attenuation (Max. db/100 ft) 50 MHz2.0
    100 MHz2.9
    200 MHz4.8
    400 MHz5.6
    700 MHz7.6
    1000 MHz9.3
    Additional Information
    Manufacturer: Coleman Cable - CCI
