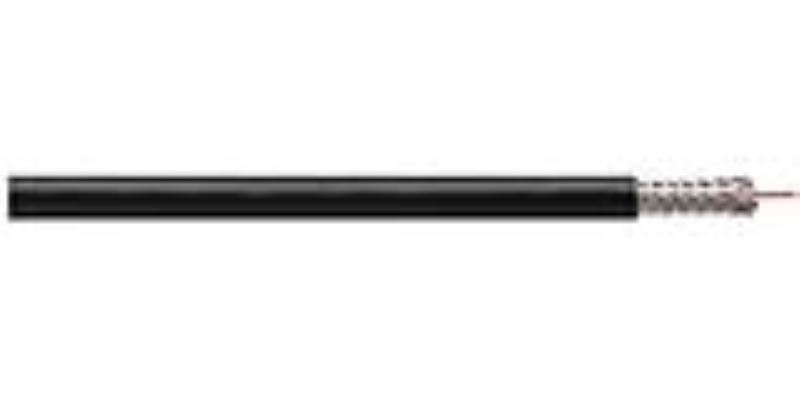

Coleman Cables Rg6 18Ccs 60 Al Riser (Cmg Ft-4)

920036

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Applications:-
    • RG6 Type
    • Dual or Quad Shield
    • PE Dielectric
    • PVC Jacket
    • 3.0 GHZ
    • CATV
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 18 AWG (1/.040) Copper Clad Steel - 0.040
Dielectric Foam Polyethylene color natural 0.070 0.180
Shielding Polyester/Aluminum Fusible Tape plus 60% Aluminum Braid - 0.216
Jacket PVC 0.032 0.269
VALUE*
Impedance (ohms) - 75
Capacitance (pF/ft) - 17
Velocity of Propagation (%) - 81
Attenuation** (db/100 ft) 10 MHz 0.8
50 MHz 1.4
100 MHz 1.9
200 MHz 2.9
400 MHz 3.9
700 MHz 5.4
1000 MHz 6.6
Additional Information
Manufacturer: Coleman Cable - CCI
