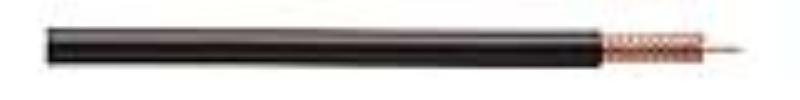

Coleman Cables Rg58 20Bc Pe 95 Tc

991041

Coleman Cable - CCI

Rg58 20Bc Pe 95 Tc
(click image to enlarge)
Quick Overview
    Features & Applications:-
  • RG58 Type
  • PE or FPE Dielectric
  • PVC Jacket
    • Interested in this item or want more information?
    Monday—Friday: 6:30am till 4:30pm EST
    Saturday—Sunday: Closed
    Phone: 1-800-796-4716
    Email: sales@tatool.net

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 20 AWG (1/.032) Solid Bare Copper - 0.031
    Dielectric Solid Polyethylene color natural 0.0420.114
    Shielding 95% Tinned Copper Braid - 0.136
    JacketPVC0.0300.196
    VALUE*
    Conductor Resistance (ohms/Kft) - 10.5
    Impedance (ohms) - 53.5
    Capacitance (Max. pF/ft) - 29
    Velocity of Propagation (%) - 66
    Attenuation (Max. db/100 ft) 50 MHz3.0
    100 MHz4.4
    200 MHz6.0
    400 MHz8.5
    900 MHz13.0
    Additional Information
    Manufacturer: Coleman Cable - CCI
