Chem-Stud

6504

Powers Fasteners

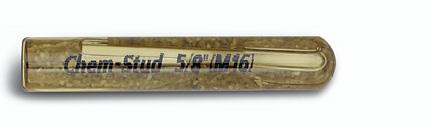

The Chem-Stud anchor systems consists of self contained two-part glass capsules and matching chisel pointed anchor rods which are installed using a rotary hammer and rod adapters.
(click image to enlarge)
Quick Overview

  • Heavy duty anchoring such as threaded anchor rods and rebars in solid concrete.
  • Steel erection including anchoring of equipment and column base plates.
  • Resists vibratory loads introduced from machinery, moving vehicles, etc.
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details

Chem-Stud    Spin-Type Capsule Adhesive Anchor System

Product Description :
The Chem-Stud anchor systems consists of self contained two-part glass capsules andmatching chisel pointed anchor rods which are installed using a rotary hammer and rodadapters. The Chem-Stud adhesive, is an ester based resin material packaged in single use glasscapsules designed for installation of 3/8" through 1-1/2" threaded rods in solid concrete andmasonry materials. It can also be used with reinforcing bars.Chem-Stud Capsule – The outer capsule contains epoxy acrylate resin (vinyl ester) in whichquartz aggregate is suspended. The inner capsule contains a benzoyl peroxide hardeningagent. When the components are combined, they form an adhesive mortar which mechanicallybonds the anchor rod to solid base materials. This type of system must be used with a chiselpointed anchor rod and must be spun into the anchor hole using a rotary hammer drill.Chem-Stud Chisel Pointed Hardware – The threaded anchor rods have a 45° chiselpoint cut on one end to properly mix the components contained in the capsule duringinstallation. A 90° point is formed on the internally threaded inserts. The threaded rod orreinforcing bar used must have a chisel point to mix the components contained in thecapsule during installation.

General Applications and Uses :

  • Heavy duty anchoring such as threaded anchor rods and rebars in solid concrete.
  • Steel erection including anchoring of equipment and column base plates.
  • Resists vibratory loads introduced from machinery, moving vehicles, etc.
  • Internally threaded inserts option for removable or adjustable anchorage.


  • Features and Benefits :
    + High strength adhesive anchoring system
    + Pre-measured chemical component volumes – no waste and simplified placement
    + Fast cure minimizes downtime
    + Over 30 years of product installation history
    + Glass capsule fragments scrape and roughens hole during installation
    + Components are mixed mechanically during installation of rod or rebar
    + Excellent chemical resistance

    Approvals and Listings :
    Independently tested and qualified to ASTM E1512 and AC58 Criteria, including creepresistance and freeze-thaw cyclingDepartment of Transportation Listings - see www.powers.com or contact transportation agency

    Guide Specifications :
    CSI Divisions: 03151-Concrete Anchoring, 04081-Masonry Anchorage and05090-Metal Fastenings.Capsule adhesive anchoring system shall be Chem-Stud as supplied byPowers Fasteners, Inc., Brewster, NY


    View Product Specification

    View Submittals
    English

    View Material Safety Data Sheets

    English
    Espanol
    Francais
    Additional Information
    Manufacturer: Powers Fasteners
