Blue Banger Hanger® internally-threaded inserts are cast into the underside of the concrete deck after being fastened to the top of wood forms or metal deck.
Once the concrete has cured, the anchor provides an attachment point for threaded rod used to hang electrical, mechanical and plumbing utilities.

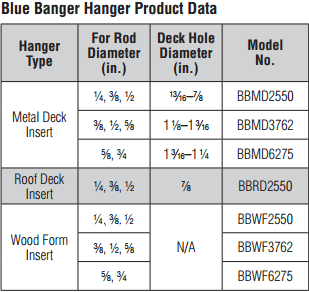

Available in versions for metal decks, wood forms and roof decks, the Blue Banger Hanger insert is the only pre-pour insert to offer the patented multi-thread design which allows one size insert to handle multiple diameters of threaded rod.

Features:

Quick and easy installation saves time and money with no assembly required
Patented multi-thread design enables each hanger to accept multiple diameters of threaded rod. Three sizes of hangers can handle all applications, reducing contractor and distributor inventories
Multi-thread design enables threaded rod size to be changed after the anchor is in the concrete
Machined steel insert with large flanged head provides high tension and shear loads for overhead attachments
Positive attachment to form keeps the hanger vertical and in the correct position
Internal threads eliminate the cost of rod couplers
Head stamped with the Simpson Strong-Tie® "?" symbol for easy identification before the concrete pour

Material:

Finish:

Factory Mutual 3024378 (except roof deck insert); Underwriters Laboratories File EX3605 (except roof deck insert)
