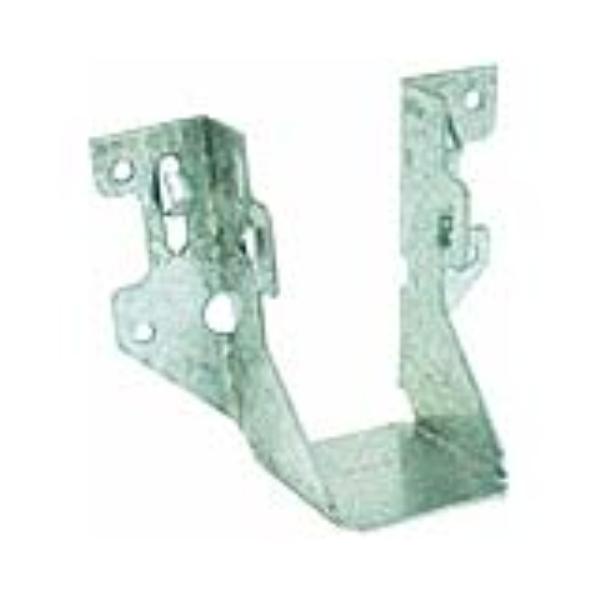

HANGER

Simpson Strong-Tie

(click image to enlarge)
SKU / Product InfoQuantity
LUS24
2 X 4/Min. Heel Height: 2-5/8 Ga: 18 Dimensions: (WxHxB) 1-9/16x3-1/8x1-3/4 Carrying Member: 4-10d Carried Member: 2-10d
LUS26
2 X 6/Min. Heel Height: 4-3/16 Ga: 18 Dimensions: (WxHxB) 1-9/16x6-5/8x1-3/4 Carrying Member: 6-10d Carried Member: 4-10d
LUS28
2 X 8/Min. Heel Height: 4-1/4 Ga: 18 Dimensions: (WxHxB) 1-9/16x4-3/4x1-3/4 Carrying Member: 4-10d Carried Member: 4-10d

Quick Overview
    Interested in this item or want more information?
    Monday—Friday: 6:30am till 4:30pm EST
    Saturday—Sunday: Closed
    Phone: 1-800-796-4716
    Email: sales@tatool.net

    Can't find what you want? Give us a call and we can help you find it.
    Details
    All hangers in this series have double shear nailing - an innovation that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection. Double shear hangers range from the light capacity LUS hangers to the highest capacity HGUS hangers. For medium load truss applications, the MUS offers a lower cost alternative and easier installation than the HUS or THA hangers, while providing greater load capacity and bearing than the LUS.
    Additional Information
    Manufacturer: Simpson Strong-Tie
