Wide-base design with smooth, beveled edges provides a large bending radius for 10 Gb Systems for all J-Hook sizes.
Meets ISO/IEC 18010, TIA-569-B and is used for large-diameter cable, including Cat. 6a & Cat. 7.
Accommodates a var

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications :-

Part Number	Description	Box Qty.	Wt/Box (lbs.)	Product Family
CATHPAN	Angle bracket with 3/16” Mounting Hole	50	1.7	MH
CATHPA4	Angle bracket with 1/4” Threaded Rod Mounting Hole	50	1.65	MH
CATHPA6	Angle bracket with 3/8” Threaded Rod Mounting Hole	50	1.65	MH
CATHPS4	Straight bracket with .282” Mounting Hole	50	1.05	MH

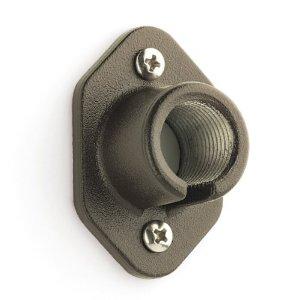

CATHPTM	Tree mounting bracket	50	2.7	MH
CATHP24	Hammer-on assembly for 1/4”-1/8” flange with 360º rotation	25	2.13	MH
CATHP58	Hammer-on assembly for 5/16”-1/2” flange with 360º rotation	25	2.25	MH
CATHP912	Hammer-on assembly for 1/2”-3/4” flange with 360º rotation	25	2.63	MH
CATHPBCB	Screw-on beam assembly for 1/8”-1/2” flange with 360º rotation	25	2.13	MH
CATHPBC200B	Screw-on beam assembly for 1/8”-5/8” flange with 360º rotation	25	3.6	MH
CATHP24SM	Hammer-on assembly for 1/8”-1/4” flange	50	2.6	MH
CATHP58SM	Hammer-on assembly for 5/16”-1/2” flange	50	2.75	MH
CATHP912SM	Hammer-on assembly for 1/2”-3/4” flange	25	1.5	MH
CATHPBC	Screw-on beam assembly for 1/8”-1/2” flange	50	3.5	MH
CATHPBC200	Screw-on beam assembly for 1/8”-5/8” flange	25	3.43	MH
CATHPAF14	Z purlin assembly for 1/16”-1/4” flange	50	3.1	MH
CATHPVF14	C purlin assembly for 1/16”-1/4” vertical flange	50	3.4	MH
CATHPESC	Easy strut assembly	50	2.2	MH
CATHP4Z34	Rod/flange assembly for #12 SWG - 1/4” wire or plain rod, 1/4” threaded rod & 1/8”-3/8” flange	50	2.3	MH
CATHP6Z34	Rod/flange assembly for 3/8” threaded rod & 3/8”-9/16” flange	50	2.25	MH
CATHPCD0B	Underfloor assembly for 3/4” round pedestal	25	1.78	MH
CATHPCD1B	Underfloor assembly for 7/8” - 1 1/8” round pedestal or 3/4” square pedestal	25	2.4	MH
CATHPCD2B	Underfloor assembly for 7/8” square pedestal	25	2.85	MH
CATHPCD2.5B	Underfloor assembly for 1” square pedestal	25	3.05	MH
CAT16HPTS	Acoustical tee bar assembly	25	7.25	MH
CATHPPLR	Cable puller for CATHP	2	1.8	MH

Additional Information

Manufacturer: Caddy
