1000 V Surge Protective Devices
TDS503BR1000DC
Caddy
(click image to enlarge)
Quick Overview
Designed to provide economical and reliable protection from transients on DC power systems
Compact design fits into inverters and solar combiner boxes
Conveniently packaged for easy installation on DIN rail
Provides remote
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email:
sales@tatool.net
Can't find what you want? Give us a call and we can help you find it.
Details
Specifications :-
Model
TDS502BR300DC
TDS502BR600DC
TDS503BR1000DC
Nominal Voltage - DC
300 V
600 V
1,000 V
Max Cont. OperatingVoltage, U
325 V DC
790 V DC
1100 V DC
Frequency
0-100 Hz
Technology
GDT MOV
Max Discharge Current, Imax
50 kA 8/20 µs
Nominal Discharge Current, In
20 kA 8/20 µs
Protection Modes
L-L, L-PE
Status
Change-over contact (Form C dry) 250V~/0.5A, max 1.5 mm² (#14AWG) connecting wire Mechanical flag

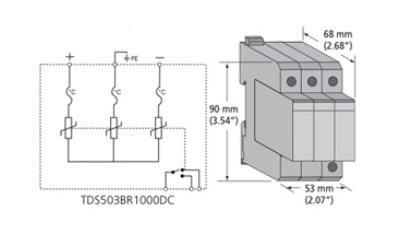

Dimensions HxDxW:mm (in)
90 x 68 x 35 (3.54 x 2.68 x 1.38)
90 x 68 x 53 (3.54 x 2.68 x 2.07)
Module Width
2 M
3 M
Enclosure
DIN 43 880, UL94V-0 thermoplastic, IP 20 (NEMA-1)
Connection
=25 mm² (#4AWG) stranded
=35 mm² (#2AWG) solid
Mounting
35 mm top hat DIN rail
Temperature
-40°C to 80°C (-40°F to 176°F)
Humidity
0 % RH to 90 % RH
Approvals
TDS Replaceable module: CE, IEC 61643-1, UL 1449 Ed3 Recognized
Component Type 2
Surge Rated to Meet
ANSI®/IEEE® C62.41-1991 Cat A, Cat B, Cat C
ANSI®/IEEE® C62.41.2 Scenario II, Exposure 2, 50 kA 8/20 µs
Replacement Module
TDS150M277
TDS150M560
TDS150M277, TDS150M560
Weight: kg (lbs)
0.24 (0.53)
0.24 (0.53)
0.36 (0.78)
Additional Information
Manufacturer: Caddy
