Size Range: 2-1/2” thru 30”
Surface Finish: Black
Support pipe from a substructure or structural member where longitudinal movement may occur due to expansion or contraction and where vertical adjustment of up to 6” may be necessar

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications :-

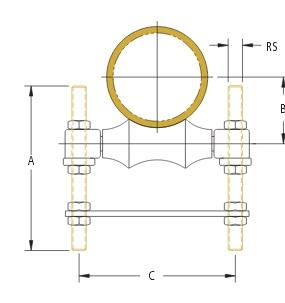

Part no.	Pipe Size	RS	A	B	C	Max. Rec. Load Lbs.
6200250PL	2-1/2”	1/2”	12”	1-7/8”	4-7/8”	660
6200300PL	3”	1/2”	12”	2-1/4”	5-5/8”	700
6200350PL	3-1/2”	1/2”	12”	2-5/8”	6-1/8”	750
6200400PL	4”	5/8”	12”	2-7/8”	6-11/16”	750
6200500PL	5”	5/8”	12”	3-1/2”	7-15/16”	750
6200600PL	6”	3/4”	12”	4”	9-9/16”	1070
6200800PL	8”	7/8”	12”	5-1/4”	12”	1350
6201000PL	10”	7/8”	12”	6-5/16”	14”	1730
6201200PL	12”	7/8”	12”	7-7/16”	15-3/4”	2400
6201400PL	14”	1”	12”	8-3/8”	17-5/8”	3130
6201600PL	16”	1”	18”	9-7/16”	19-5/16”	3970
6201800PL	18”	1”	18”	10-7/16”	21-5/8”	4200
6202000PL	20”	1-1/4”	18”	11-1/2”	24-1/8”	4550
6202400PL	24”	1-1/2”	24”	13-15/16”	28-3/8”	6060
6203000PL	30”	1-1/2”	24”	17-1/4”	35-3/8”	7290

Additional Information

Manufacturer: Caddy
