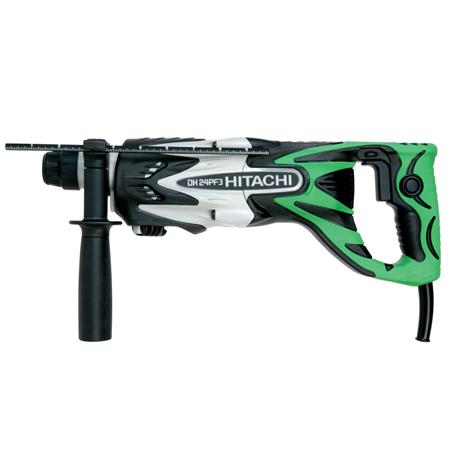

Hitachi DH24PF3 15/16 Inch SDS Plus Rotary Hammer, 3-Mode, VSR (D-Handle)

DH24PF3

Metabo - Hitachi

(click image to enlarge)
Quick Overview
    • 2.5 ft/lbs of impact energy- best in class for delivering forcible hammering
    • Electronic variable speed control gives the tool a no-load RPM of between 0-1,150- best in class for fast drilling
    • 7.0Amp motor with 800 watts of input power combines powerful hammering with fast drilling
    • 3-modes of operation; drilling only, hammering only and hammer drilling for flexibility within a range of applications
    • Quick-set bit system, makes replacing bits quick and easy
    • Push-button reversing switch to easily back out bits
    • Mode selector dial, makes transitioning between modes simple and efficient
    • Lock-on speed button for continuous operation, reduces user fatigue
    • Removable side handle (360 degrees) with depth gauge, improves control and ensures accurate drilling depth
    • 5.3 lbs, one of the lightest and most compact (15-15/16") rotary hammers in its class
    • Elastomer coated D-handle helps to absorb vibration and provide a secure grip
    • Download the DH24PF3 Tool Card

    Includes:

    • Depth Gauge (310331)
    • Side Handle (324548)
    • Case (324591)

    Optional

    • 3-Jaw Chuck (Hammer Only) (303332)
    • 3-Jaw Chuck (Drilling Only) (303820)
    • SDS+ to Square Male (303044)
    • Service Kit (326305)
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details
Shank Size 15/16"
Shank Type SDS Plus
Amps 7.0
Modes 3
No-Load Speed 0-1,150 RPM
Impact Energy 2.5 ft/lbs
Impacts/min 0-4,600 IPM (full load)
Capacity-Steel: 1/2"
Capacity-Wood: 1-1/4"
Capacity-Core Bit: 2"
Tool Length 15.94"
Tool Weight 5.3 lbs
Additional Information
Manufacturer: Metabo - Hitachi
