SKU / Product Info	Quantity
36500426 Shank Diameter and Length: 1/4 x 2; Length of Thread: 1.5; Eye Inside Dimension: 0.50; Eye Outside Dimension: 0.87; Weight Each: 0.09; Working Load Limit: 460*
36500431 Shank Diameter and Length: 1/4 x 4; Length of Thread: 2.5; Eye Inside Dimension: 0.50; Eye Outside Dimension: 0.87; Weight Each: 0.12; Working Load Limit: 460*
36500436 Shank Diameter and Length: 5/16 x 2-1/4; Length of Thread: 1.5; Eye Inside Dimension: 0.62; Eye Outside Dimension: 1.12; Weight Each: 0.16; Working Load Limit: 780*
36500441 Shank Diameter and Length: 5/16 x 4-1/4; Length of Thread: 2.5; Eye Inside Dimension: 0.62; Eye Outside Dimension: 1.12; Weight Each: 0.17; Working Load Limit: 780*
36500446 Shank Diameter and Length: 3/8 x 2-1/2; Length of Thread: 1.5; Eye Inside Dimension: 0.75; Eye Outside Dimension: 1.37; Weight Each: 0.24; Working Load Limit: 1160*
36500451 Shank Diameter and Length: 3/8 x 4-1/2; Length of Thread: 2.5; Eye Inside Dimension: 0.75; Eye Outside Dimension: 1.37; Weight Each: 0.30; Working Load Limit: 1160*
36500456 Shank Diameter and Length: 1/2 x 3-1/4; Length of Thread: 1.5; Eye Inside Dimension: 1.00; Eye Outside Dimension: 1.75; Weight Each: 0.54; Working Load Limit: 2150*
36500461 Shank Diameter and Length: 1/2 x 6; Length of Thread: 3; Eye Inside Dimension: 1.00; Eye Outside Dimension: 1.75; Weight Each: 0.69; Working Load Limit: 2150*
36500466 Shank Diameter and Length: 5/8 x 4; Length of Thread: 2; Eye Inside Dimension: 1.25; Eye Outside Dimension: 2.25; Weight Each: 1.04; Working Load Limit: 3440*
36500471 Shank Diameter and Length: 5/8 x 6; Length of Thread: 3; Eye Inside Dimension: 1.25; Eye Outside Dimension: 2.25; Weight Each: 1.25; Working Load Limit: 3440*
36500476 Shank Diameter and Length: 3/4 x 4-1/2; Length of Thread: 2; Eye Inside Dimension: 1.50; Eye Outside Dimension: 2.75; Weight Each: 1.65; Working Load Limit: 5140*
36500481 Shank Diameter and Length: 3/4 x 6; Length of Thread: 3; Eye Inside Dimension: 1.50; Eye Outside Dimension: 2.75; Weight Each: 1.80; Working Load Limit: 5140*

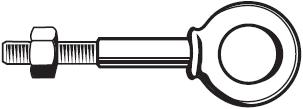

Quick Overview

Drop forged.

Hot dipped galvanized or stainless steel.

Furnished with standard hex nuts.

See Warnings "Eyebolts" on Page 10 for proper use and selection.

Follow all Warnings, Use and Application

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

*WORKING LOAD LIMIT IS BASED ON A DESIGN FACTOR OF 5:1

Additional Information

Manufacturer: Indusco Wire Rope & Fittings
