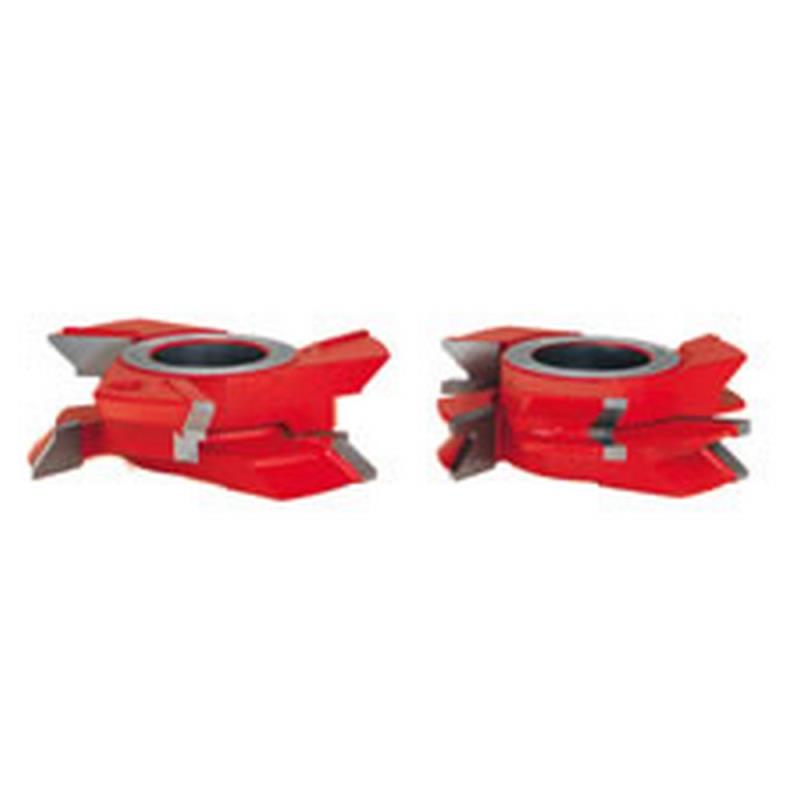

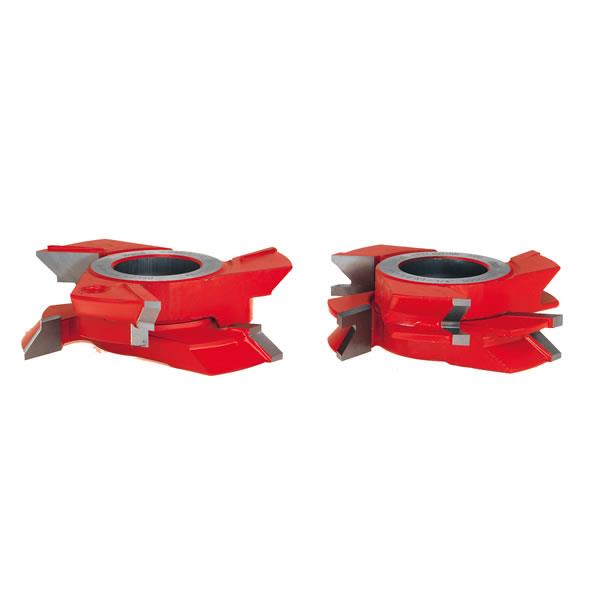

4-1/8" (Dia.) Fixed Wing V-Paneling Cutter Sets with 1-1/4" bore

UP190

Freud

V-Paneling Cutter Sets
(click image to enlarge)
Quick Overview

    These cutters sets are designed to make V-groove paneling with a strong tongue and groove joint. Each set can be used with 1/2", 3/4", and 1" stock. Shims are included to allow the thickness of the tongue to increase as stock increases. UP190 cuts a V-groove on both sides of the paneling, while UP191 only cuts a V-groove on one side.

    • TiCo™ Hi-Density Carbide
    • Anti-Kickback Design
    • Thick micrograin carbide tips.
    • Shear Angle
    • Covered by Freud's limited lifetime warranty
Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.
Details
  • Ideal For: To make V-groove paneling with a strong tongue and groove joint.
  • Machine Use: Shaper
  • Materials: Wood, Wood Composites
  • Overall Diameter 4-1/8"
  • Carbide Height 31/32"–1-5/64"
  • Bore Diameter 1-1/4"
  • Cut Depth 19/64"
  • Minor Height 19/64"
Additional Information
Manufacturer: Freud
