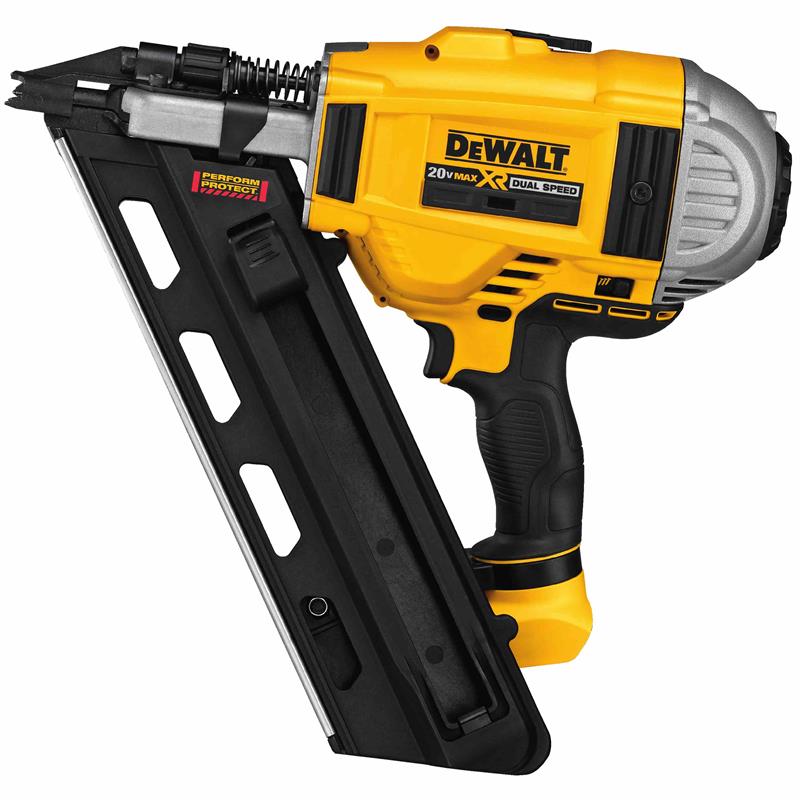

20V MAX* XR Dual Speed Framing Nailer – Tool Only



The DCN692B 20V MAX* XR Brushless 2-Speed Nailer features consistent nail penetration and precision placement. Designed for optimizing speed for various fastener lengths and easy jam removals.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Monday—Friday: 6:30am till 4:30pm EST
    Saturday—Sunday: Closed
    Phone: 1-800-796-4716
    Email: sales@tatool.net

    Can't find what you want? Give us a call and we can help you find it.

    Features & Specs


    • Brushless motor and engine design allow the tool to work as fast as the end user with consistent nail penetration into both soft and hard joints
    • Sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed.
    • 2-speed selector switch optimizes speed for fastener lenghts
    • Easy access to the nosepiece for the removal of jammed nails
    • Trigger lock-off allows trigger to be disabled when tool is not in use
    • Top cap is impact resistant and easy to remove for troubleshooting


    • Belt / Rafter Hook Yes
    • Collation Type Paper
    • Depth Adjustment Tool Free
    • Dry Fire Lockout Yes
    • Fastener Diameter Range .113 to .131 in
    • Fastener Type / Gauge: 30 Degree Paper Tape
    • Firing / Acutation Mode Tool Free Selectable Trigger
    • Grip Overmold
    • Jam Clearance Yes
    • Length 2 to 3-1/2 in
    • Magazine Angle 30 Degree
    • Magazine Loading Rear Load
    • Nail Diameter .113 to .131 in
    • No Mar Pad Yes
    • Power Source Cordless
    • Power Tool Type Cordless
    • System 20V MAX*
    • Tool Height 13.5 in
    • Tool Length 13.25 in
    • Tool Weight 7.8 lbs
    • Tool Width 4 in
    • Trigger Lock-Off Yes
    Additional Information
    Manufacturer: DeWalt
