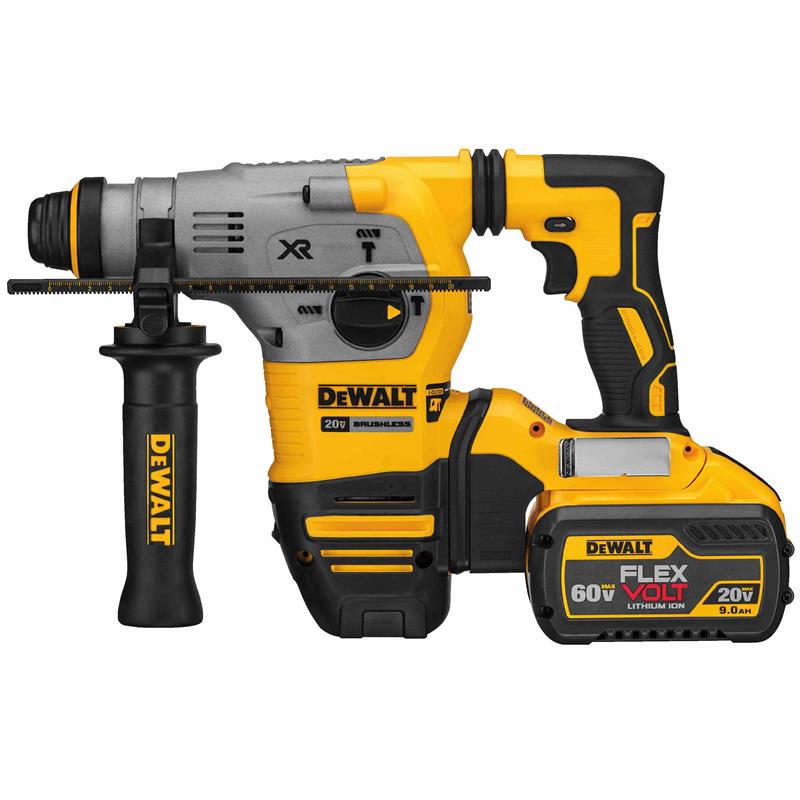

20V Max XR Brushless 1-1/8” L-Shape SDS Plus Rotary Hammer Kit w/9.0Ah



The DCH293X2 20V Max XR Brushless 1-1/8” Rotary Hammer is a high-performance drill that is powered by a DEWALT brushless motor and durable German engineered mechanism that delivers 3.5 joules of impact energy. With its balanced design, SHOCKS® Active Vibration Control® technology and Extreme Run Time, this hammer is ideally suited for all day use and large diameter hole drilling, even in the hardest concrete. The patented E-Clutch ® system provides enhanced control to the user in a bind up situation and can help minimize sudden torque reaction compared to standard clutches.The DCH293 is Dust Extraction ready for the D25304DH.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Monday—Friday: 6:30am till 4:30pm EST
    Saturday—Sunday: Closed
    Phone: 1-800-796-4716
    Email: sales@tatool.net

    Can't find what you want? Give us a call and we can help you find it.

    Features & Specs


    • 3.5J's of impact energy provides corded power without the cord
    • E-Clutch for maximum control in bind-up situations - A Perform and Protect feature.
    • SHOCKS - Active Vibration Control reduces vibration felt by the user at the handles. A Perform and Protect feature.
    • DEWALT built brushless motor for all day runtime and durability
    • Retractable utility hook for convenient hanging
    • German Engineered for Quality and Durability
    • Dust Management Ready. Use with D25304DH.


    • Blows/Min 0 - 4480 bpm
    • Chargers/Batteries DCB609 / DCB118
    • Chipping Yes
    • Chisel Rotation true
    • Chuck Type SDS+
    • Clutch E-Clutch™ and Integral Mechanical Clutch
    • Dust Collection Ready true
    • E-Clutch(TM) Yes
    • Impact Energy 3.5 Joules
    • No Load Speed 0 - 1,000 rpm
    • Optimal Concrete Drilling 5/8" - 7/8" in
    • Power Tool Type Cordless
    • Switch Variable Speed
    • System 20V MAX*
    • Tool Length 13.78 in
    • Tool Weight 8.2 lbs
    • Vibration Control Yes - SHOCKS™
    • Vibration Measurement 7.5
    Additional Information
    Manufacturer: DeWalt
