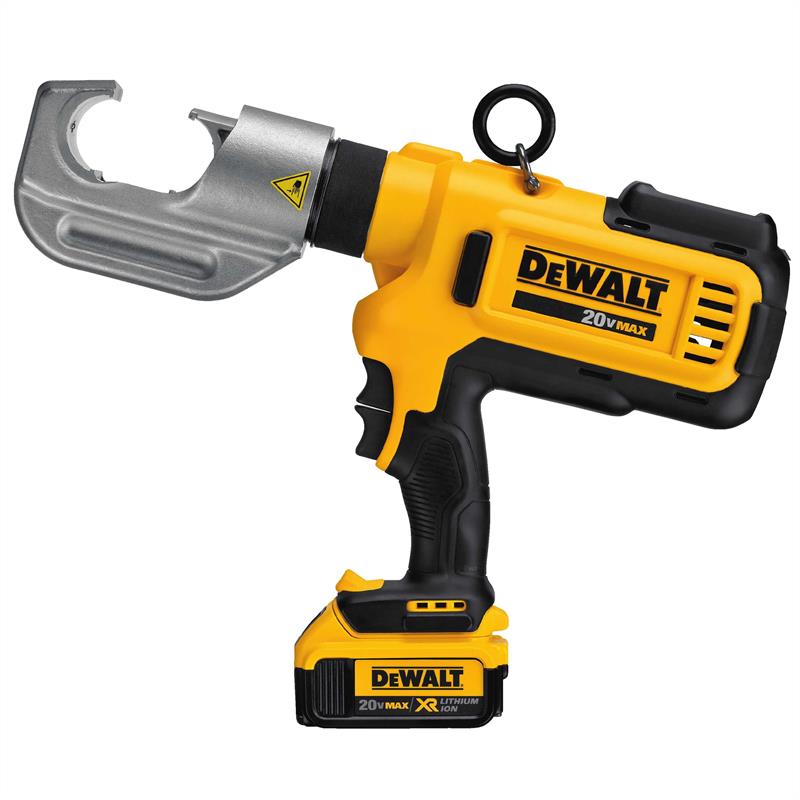

The DEWALT U-Type Died Crimping Tool (DCE300) delivers a 12-ton crimping force for UL classified crimps using compatible connectors from leading manufacturers. It accepts U Type dies from all brands and has a capacity from #8 – 750 MCM Cu /Al. A 270° pivoting head allows the crimper to maneuver in tight spaces while forward and reverse trigger switches offer convenient one-handed operation. The tool features Crimp Connect™ software, an onboard intelligence system integrated into the tool that provides detailed reports of date, time, force, and successfully completed cycles of the crimps completed by the tool. Crimp Connect™ software also reports on tool calibration and service history. An integrated LED interface is used to communicate power on or power off, battery state of charge, cycle completion, and if recalibration or service is needed. A bright LED light helps to illuminate the crimping area when working in dark spaces. The tool also includes attachment points and a shoulder strap for convenience when transporting around the jobsite.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Monday—Friday: 6:30am till 4:30pm EST
Saturday—Sunday: Closed
Phone: 1-800-796-4716
Email: sales@tatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

Features & Specs

FEATURES

750 McM Cu / 750 Al crimping capacity for copper and aluminum cable
Crimp Connect™ software provides detailed reports of work done
Onboard diagnostics indicates battery life successfully completed cycles, service needed, and operating termperature range
Guard rails protect crimping head when crimping small diameter cable
Bright LED light help to illuminate work area
Easily accessible forward and reverse triggers for ease of use
Shoulder strap and connection ring for portability

Specifications

Cable Capacity 750 Cu/ Al MCM
Die Type U Type
Force 12 tons
Handle Configuration Pistol Grip
Material Copper
Power Tool Type Cordless
System 20V MAX*
Tool Height 14 in
Tool Length 17.5 in
Tool Weight 14.6 lbs

Includes

DCE300
(2) DCB204 4 Ah Li-Ion batteries
DCE115 Charger
Shoulder Strap
Kitbox

Additional Information

Manufacturer: DeWalt
